性能
主板元件 |
Micro ATX |
英特尔®快速存储技术 |
Y |
Motherboard ARK ID |
69044 |
主板芯片组系列 |
Intel |
英特尔® 双显示功能技术 |
Y |
英特尔®图形技术处理器 |
Y |
组件应用 |
PC |
家用红外线头 |
Y |
英特尔® 矩阵存储技术 |
Y |
能源之星认证 |
Y |
内存参数
可支持内存时钟速度 |
1333, 1600 MHz |
无错误检测和更正 |
Y |
支持的内存类型 |
DDR3-SDRAM |
内存通道支持 |
Dual |
内存插槽类型 |
DIMM |
內存插槽数量 |
4 |
最大内部存储 |
32 GB |
内置输入/输出系统
USB 2.0接口 |
6 |
S/PDIF输出端口 |
Y |
USB 3.0(第 1代3.1)连接器 |
2 |
SATA III连接器数量 |
6 |
扩展槽
Mini PCI Express插槽 |
1 |
PCI Express x16 插槽 |
1 |
PCI Express × 1插槽 |
3 |
PCI Express x1(Gen 2.x)插槽 |
3 |
PCI Express X16(Gen 3.x)插槽 |
1 |
PCI Express插槽版本 |
2.0, 3.0 |
图像
板载图形适配器 |
Y |
分立图形支持 |
Y |
支持的显示器数量 |
3 |
技术细节
散热设计功耗 (TDP) |
95 W |
状态 |
End of Interactive Support |
SATA 连接口总数 |
6 |
处理器支持最大内存 |
32 GB |
格式要素 |
Micro ATX |
处理器支持 ECC 功能 |
N |
板载图形适配器支持的显示器数量 |
3 |
设计
产品系列 |
Desktop board |
产品系列 |
Intel desktop board with Intel H87 |
背板输出端口
DVI-I接口数量 |
1 |
DisplayPort 数量 |
1 |
USB 3.0(第 1代3.1)Type-A 端口数量 |
4 |
HDMI端口数量 |
1 |
另外
最大内部存储 |
32768 MB |
英特尔® 高保真音频技术 |
Y |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

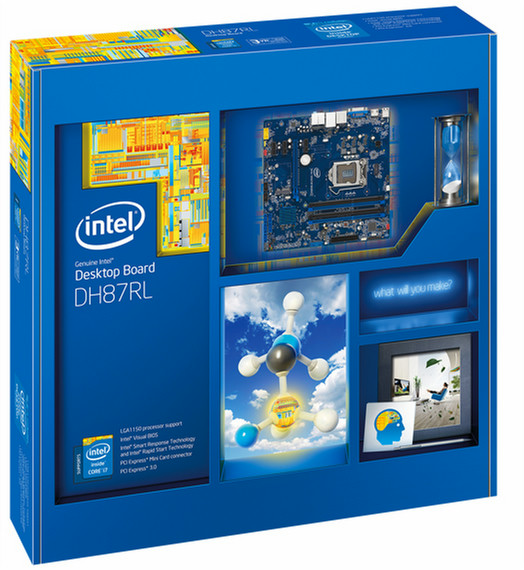

Desktop Board DH87RL
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
