内置输入/输出系统
通过内部接头的串行端口 |
Y |
USB 2.0接口 |
5 |
串列ATA连接器数量 |
6 |
SATA III连接器数量 |
2 |
SATA II连接器数量 |
2 |
并行端口,通过内部头 |
N |
内存参数
可支持内存时钟速度 |
1333, 1600 MHz |
错误更正代码 |
N |
支持的内存类型 |
DDR3-SDRAM |
内存通道支持 |
Dual |
内存插槽类型 |
DIMM |
內存插槽数量 |
2 |
最大内部存储 |
16 GB |
背板输出端口
串口数量 |
1 |
DisplayPort 数量 |
1 |
USB 3.0(第 1代3.1)Type-A 端口数量 |
4 |
HDMI端口数量 |
1 |
扩展槽
Mini PCI Express插槽 |
2 |
PCI Express × 4插槽 |
1 |
PCI Express X4(Gen 3.x)插槽 |
1 |
PCI Express插槽版本 |
2.0, 2.1 |
性能
延长使用期计划(XLP) |
Y |
英特尔®快速存储技术 |
Y |
Motherboard ARK ID |
59046 |
主板芯片组系列 |
Intel |
英特尔®主动管理技术 (Intel Active Management Technology ) 版本 |
8.0 |
英特尔® 双显示功能技术 |
Y |
可信任平台模组(全面生产管理) |
Y |
英特尔®主动管理技术 |
Y |
英特尔®图形技术处理器 |
Y |
组件应用 |
PC |
能源之星认证 |
Y |
技术细节
散热设计功耗 (TDP) |
65 W |
状态 |
End of Interactive Support |
SATA 连接口总数 |
4 |
PCIe迷你卡插槽(半长) |
1 |
市场细分 |
DT |
PCIe迷你卡插槽(全长) |
1 |
要求采用英特尔®图形技术的处理器 |
Y |
Born on date |
Q2'12 |
发射日期 |
2012-06-04T00:00:00 |
产品名称 |
Intel Desktop Board DQ77KB |
支持的RAID配置 |
0,1,5,10 |
USB 3.0(第 1代3.1)端口数量 |
4 |
音频通道 |
2,2 |
最大内存 |
16 GB |
处理器支持最大内存 |
16 GB |
格式要素 |
Thin Mini-ITX |
处理器支持 ECC 功能 |
N |
板载图形适配器支持的显示器数量 |
2 |
USB 端口数量 |
9 |
其他功能
图形输出 |
LVDS eDP HDMI DP |
补充SKU |
N |
CPU配置(最大) |
1 |
设计
产品系列 |
Desktop board |
产品系列 |
Intel desktop board with Intel Q77 Express |
处理器的特殊功能
英特尔® 防盗技术 |
Y |
英特尔®vPro™ 技术 |
Y |
另外
主板晶片 |
Intel Q77 Express |
最大内部存储 |
16384 MB |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

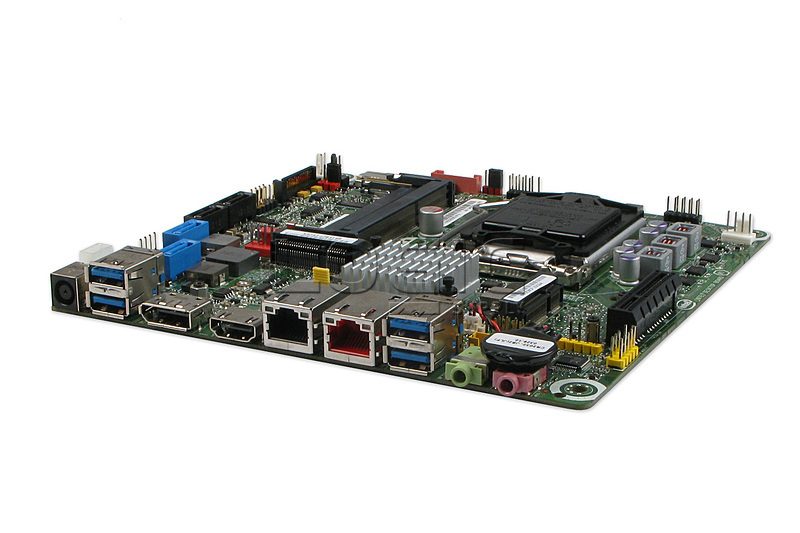

From its strong roots in Intel® vProTM technology, the Intel® Desktop Board DQ77KB marks another pinnacle for boards in the business segment with its thin mini-ITX solution. The Intel® Desktop Board DQ77KB is designed and engineered to support business environments where operational efficiency and effectiveness counts. The board supports the latest AMT 8.0 and is equipped with Intel® Identity Protection Technology (Intel® IPT) as well as Intel® Anti-Theft Technology (Intel® AT). It is also one of the only business boards that comes with dual-LAN to enable link aggregation and improves Ethernet throughput. On top of essential features, Intel® Desktop Board DQ77KB houses great expandability options from USB3.0 to PCIe mini with the ability to support triple-display. With its z-height profile at just 20mm, Intel® Desktop Board DQ77KB is the absolute choice for small form factor applications, especially in All-In-One (AIO) systems. Understanding the importance for businesses to maintain a stable operating platform, Intel® Desktop Board DQ77KB is secured with Stable Image Platform Program (SIPP) and Extended Life Program (XLP). Make your business investments worthwhile. Contact your Intel® representative today to find out more.
