产品特点
| 英特尔® 矩阵存储技术 |
N |
| 格式要素 |
Arduino |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®虚拟化技术 |
N |
| 英特尔® 防盗技术 |
N |
| 可信任平台模组(全面生产管理) |
N |
| 英特尔®客户端发起远程访问技术（CIRA） |
N |
| 英特尔®AC'97技术 |
N |
| 可选用的嵌入式选项 |
N |
| FSB奇偶校验 |
N |
| 英特尔®快速恢复技术 |
N |
| 英特尔®静音系统技术（QST） |
N |
| 英特尔®远程电脑辅助技术（RPAT） |
N |
| 英特尔®远程唤醒技术 |
N |
| 物理地址扩展（PAE） |
Y |
| 英特尔®中小企业通锐软件(SBA) |
N |
| 英特尔®可信执行技术 |
N |
| 英特尔® Flex内存访问 |
N |
| 英特尔® 快速内存访问 |
N |
| 低卤可用选项 |
Y |
| 英特尔®快速存储技术 |
N |
| 延长使用期计划（XLP） |
N |
| 返回到BIOS按钮 |
N |
内存参数
| 最大内存卡大小 |
32 GB |
| EEPROM（电子抹除式可复写只读存储器） |
8 KB |
| SRAM（静态随机存取存储器） |
512 KB |
| 闪存类型 |
NOR |
| 内存通道支持 |
Single |
| 内存时钟速度 |
800 MHz |
| 错误更正代码 |
N |
| 数据宽度 |
32 bit |
| 内存带宽（最大） |
2.5 GB/s |
| 内存类型 |
DDR3 |
| 闪存 |
8 MB |
| 最大内部存储 |
0.256 GB |
处理器
| 核心的处理器数量 |
1 |
| CPU配置（最大） |
1 |
| 64位计算 |
N |
| 微控制器型號 |
Intel Quark |
| 处理器高速缓存 |
16 KB |
| 散热设计功耗 (TDP) |
12.5 W |
| 处理器光刻 |
32 nm |
| 处理器频率 |
400 MHz |
端口 & 界面
| 支持以太网（PoE）电源供应 |
12 V |
| 支持以太网（PoE） |
Y |
| USB 端口数量 |
3 |
| USB版本 |
2.0 |
| 无线局域网连接 |
N |
| 串口数量 |
1 |
| 通过内部接头的串行端口 |
Y |
扩展槽
| Mini PCI Express插槽（全） |
1 |
| PCI Express接口数据线 |
x1 |
| PCI版本 |
2.0 |
| PCI Express × 1插槽 |
1 |
另外
| 英特尔®AES新指令 |
N |
| 英特尔® 高保真音频技术 |
N |
| 以太网连接器 |
Y |

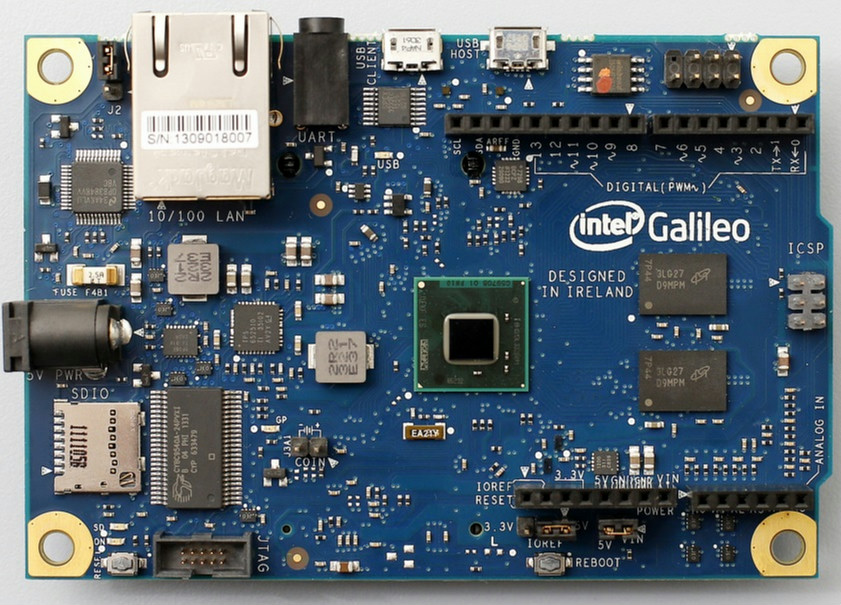

Galileo Board
<b>Arduino Compatible development board
</b>
The Intel® Galileo board is a microcontroller board based on the Intel® Quark SoC X1000 application processor, a 32-bit Intel® Pentium® brand system on a chip (SoC). It is the first board based on Intel® architecture designed to be hardware and software pin-compatible with shields designed for the Arduino Uno R3.
This platform provides the ease of Intel architecture development through support for the Microsoft Windows, Mac OS, and Linux host operating systems. It also brings the simplicity of the Arduino integrated development environment (IDE) software.
The Intel Galileo board is also software-compatible with the Arduino software development environment, which makes usability and introduction a snap. In addition to Arduino hardware and software compatibility, the Intel Galileo board has several PC industry standard I/O ports and features to expand native usage and capabilities beyond the Arduino shield ecosystem. A full-sized mini-PCI Express slot, 100 Mb Ethernet port, Micro-SD slot, RS-232 serial port, USB host port, USB client port, and 8 Mbyte NOR Flash come standard on the board.
The genuine Intel® processor and surrounding native I/O capabilities of the SoC provides for a fully featured offering for both the maker community and students alike. It will also be useful to professional developers who are looking for a simple and cost effective development environment to the more complex Intel® Atom™ processor and Intel® Core™ processor-based designs.
