内存参数
可支持内存时钟速度 |
667, 800 MHz |
错误更正代码 |
Y |
DIMM插槽数量 |
4 |
支持的内存类型 |
DDR2-SDRAM |
最大内部存储 |
8 GB |
处理器
可支持处理器数量 |
1 |
处理器生产厂商 |
Intel |
可支持的处理器的核心数量 |
4, 2 |
CPU配置(最大) |
1 |
性能
集成IPMI的BMC |
Y |
Motherboard ARK ID |
31961 |
可选用的嵌入式选项 |
N |
技术细节
状态 |
End of Life |
SATA 连接口总数 |
4 |
市场细分 |
SRV |
Born on date |
Q3'07 |
FireWire支持 |
N |
产品名称 |
Intel Server Board X38ML |
支持的RAID配置 |
Intel Emb RAID (0, 1, 10) |
无卤 |
N |
音频通道 |
None |
最大内存 |
8 GB |
处理器支持最大内存 |
8 GB |
格式要素 |
Custom |
处理器支持 ECC 功能 |
Y |
USB 端口数量 |
4 |
扩展槽
PCI Express X16(Gen 1.x)插槽 |
1 |
联网
以太网接口类型 |
Gigabit Ethernet |
无线局域网连接 |
N |
设计
产品系列 |
Single-socket server board |
组件应用 |
Server |
机箱板型 |
Rack |
产品系列 |
Intel X38ML |
产品代号 |
Melstone |
另外
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
2 |
主板晶片 |
Intel X38 Express |

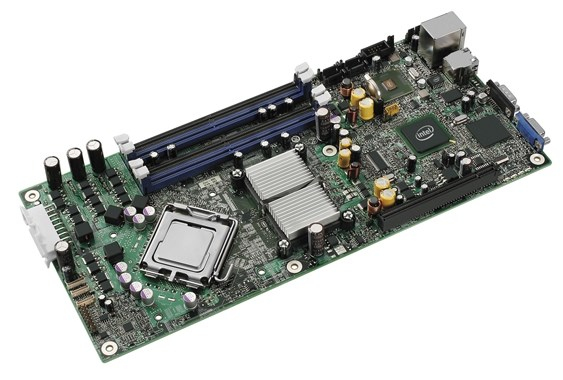

Intel® Server Board X38ML (HORIZONTAL POWER CONNECTOR) 1333 FSB, integrated IPMI 2.0, 4 DDR2 DIMM slots, four SATA Ports, 6’ x 13” form factor. RoHS Compliant and Pb-free 2nd level interconnect. Supports 45nm single, dual, and quad core.
Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
ECC Memory Supported
ECC Memory Supported indicates processor support for Error-Correcting Code memory. ECC memory is a type of system memory that can detect and correct common kinds of internal data corruption. Note that ECC memory support requires both processor and chipset support.
