其他功能
| 标准风扇 |
5 dual-rotor + 2 power supply module |
| 板载图形适配器 |
Y |
| CPU配置（最大） |
2 |
技术细节
| 可支持的存储驱动器数量 |
6 |
| 状态 |
End of Life |
| PCI Express X8（Gen 1.x）插槽 |
1 |
| SATA 连接口总数 |
6 |
| 支持系统主板 |
Intel Server Board S5000PALR |
| 2.5" 托架数量 |
6 |
扩展槽
| PCI Express x8插槽 |
1 |
| PCI Express × 4插槽 |
1 |
内存参数
| DIMM插槽数量 |
8 |
| 错误更正代码 |
Y |
| 支持的内存类型 |
FBDIMM |
| 最大内部存储 |
32 GB |
设计
| 产品系列 |
1U server system |
| 产品系列 |
Intel SR1550AL |
| 产品代号 |
Alcolu |
| 格式要素 |
1U |
另外
| 主板晶片 |
Intel 5000P |
| 以太网路(RJ-45)连接接口数量 |
2 |

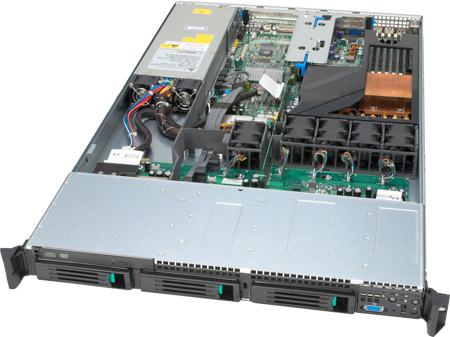

INTEGRATED SR1550AL REV W/ PASSIVE M
A family of rack-optimized highly integrated server systems designed for flexible, high-density server solutions
Intel® Server Systems SR1500AL, SR1550AL, and SR2500AL are intended to provide different levels of power and cooling redundancy and flexible storage solutions including 2.5"/3.5" SATA or SAS drives, as well as support for both tape drives and optical drives. These systems designed for space-constrained environments are optimized in either a 1U, 1U with redundant power or a 2U form-factor. The 1U systems (Intel® Server Systems SR1500AL, SR1550AL) are designed for organizations running front-end Internet, Web-hosting, and high performance computing (HPC) applications. The 2U system (Intel® Server System SR2500AL) can handle more demanding departmental database, datacenter and other high-transaction applications.
Features and benefits:
- Multi-Core processing. Multiplies server performance by doubling processing ability on a single chip, without increasing power consumption.
- Dual independent bus architecture. Enables dedicated data flow to each processor, maximizing system performance.
- Fully buffered DIMM memory. Increases capacity and memory bandwidth to keep pace with the processor and I/O performance enhancements.
Intel® Extended Memory 64 Technology◊1Extends the amount of available server memory.
- Intel® I/O Acceleration Technology (Intel® I/OAT). A platform innovation that helps get network data to and from server applications faster, while consuming far fewer CPU cycles.
- Intel® Virtualization Technology. Turns a physical server into multiple systems (virtual machines) allowing multiple operating systems and applications to run inside a single platform.
- Execute Disable Bit. Reduces exposure to viruses and prevents harmful software from executing on the server or network.
- Enhanced Intel® SpeedStep® Technology. Allows processors to adjust their operating speeds to meet varying performance needs, while balancing power consumption.
