联网
| 双机热备系统 |
Full, Half |
| 网络标准 |
IEEE 802.3, IEEE 802.3u |
| 转换器输入接口 |
100Base-TX |
性能
| 发射功率（最小） |
-22 dBmW |
| 可支持的光纤电缆直径 |
50/125 µm |
| 接收功率（最小） |
-30 dBmW |
| 光纤模式结构 |
Multi-mode |
| 最大传输距离 |
2000 m |
| 发射功率（最大） |
-12 dBmW |
| 波长 |
1310 nm |
能量控制
| 功耗（一般操作） |
2.5 W |
| 输出电压 |
5 V |
| 外接电源转接器 |
Y |
| 输入电流 |
1 A |
设计
| 內置式 |
N |
| 液晶显示器指示灯 |
LAN, Link, Power |
其他功能
| 尺寸（宽 x 深 x 高） |
70 x 107 x 26 mm |
端口 & 界面
| 光纤通道端口 |
1 |
| DC-IN插口 |
Y |
| 光纤连接器 |
ST |
环境条件
| 储存温度范围 (T-T) |
-45 - 85 °C |
| 运行湿度范围(H-H) |
10 - 90% |
另外
| 产品色彩 |
Black |
| 数据传输率（最大） |
100 Mbit/s |
| 连接方式 |
Wired |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
0 - 70 °C |

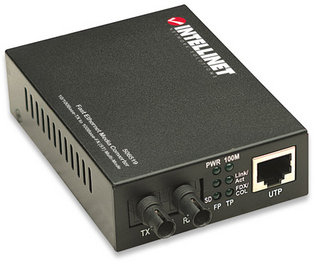

Fast Ethernet, 1310nm, 0.5kg, black
The intellinet network solutions Fast Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before – only now it can support both copper and fiber mediums.
Expands the Size of an Existing Network
Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device.
Cabling Flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.
