联网
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
| 支持网络协议 |
TCP/IP, ARP, RARP, ICMP, DHCP, FTP, SMTP, PPP |
视频
| Maximum frame rate |
30 fps |
| 最大视频分辨率 |
768 x 576 pixels |
| PAL分辨率 |
768 x 576, 384 x 288, 192 x 144 pixels |
| NTSC分辨率 |
640 x 480, 320 x 240, 160 x 120 pixels |
技术细节
| 内置存储器 |
16 MB |
| 闪存 |
4 MB |
| PTZ控制（平移/倾斜/缩放） |
N |
| 压缩等级 |
10:1 |
系统要求
| 最低内存 |
32 MB |
| 最低处理器 |
Pentium II, 266 MHz |
Fast Ethernet, 16MB, 768 x 576, NTSC/PAL, RS-485, 230g, Red

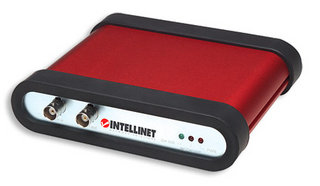

Bring Advanced Network IP Camera Features to your CCTV System !
The Intellinet Network Video Server (NVS) allows you to transmit video images through the network using your existing closed circuit TV cameras. Using the Intellinet NVS, you can now add the sophisticated features previously available only through network IP cameras. The NVS allows you to continue to expand your video surveillance system with new technology, while protecting investments already made.
No Dedicated PC Required
Accessing CCTV systems through the network typically requires a dedicated PC. The Intellinet NVS allows you to access your closed circuit TV cameras without the need for a dedicated PC or any additional software programs.
Easy Setup
The NVS is easy to install because the Web Page/IP Installer makes assigning an IP address quick and simple.
Compatible with Most Equipment
The Intellinet NVS can be used in a mixed environment with Windows, Unix, Mac and OS/2. It supports TCP/IP networking, SMTP email, HTTP and other Internet-related protocols. It allows you to grow your video surveillance system by integrating existing investments with new equipment so you can support a wide variety of cameras.
Simultaneous Viewing
Up to 100 people can be simultaneously accessing the NVS at any one time. This is very useful in applications like kindergarten class monitoring by parents from their work or home.
Event Triggering
Upon detecting motion through an infrared sensor or on a scheduled basis, the NVS can 1) send an alarm, 2) email a captured image or 3) send a captured image to an FTP server. This event-triggering capability is becoming more and more popular as companies are required to pass security audits in compliance with recent legislation
Security
The Intellinet NVS includes a self-contained Web server, which means that digital images can be secured as with any other Internet host. The network administrator can use multi-user password protection to decide whether individuals, groups or the whole world may access the camera.
