产品特点
| 从前向后比率 |
35 dB |
| 安装套管 |
38 - 51 mm |
| 电压驻波比(VSWR) |
1.60 : 1 |
| 天线接口类型 |
N-type |
| 极化类型 |
Dual polarization |
| 天线类型 |
Directional antenna |
| 安全风速 |
170 km/h |
性能
| 垂直波束宽度 |
10 ° |
| 水平波速宽度 |
10 ° |
| 天线增益水平(最大值) |
23 dBi |
| 频段 |
5.15 - 5.85 GHz |
| 阻抗 |
50 Ω |

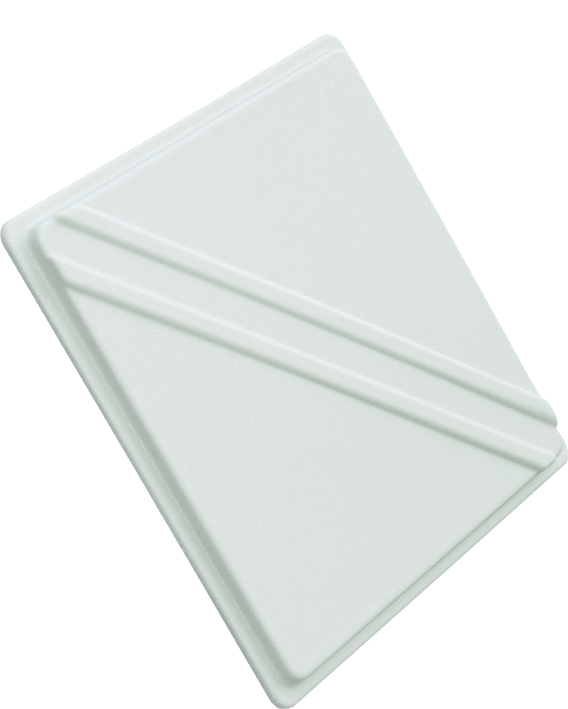

PANEL 23/5.2-5.8GHz, 50Ω, N female, Outdoor, IP64, 1.12kg
Antenna PANEL 23 is one of the most powerful antenna for 5GHz band. Specially designed to support the full range of IEEE 802.11a standard. In the whole band has a good match that provides high data transfer rates and link stability even when working with dynamic channel selection. --- PANEL is a series of panel directional antennas, designed for installation on both the outside and inside of buildings. PANEL antenna series are constructed in microstrip technology which ensures excellent repeatability of the electrical parameters of the antenna in the production process.
