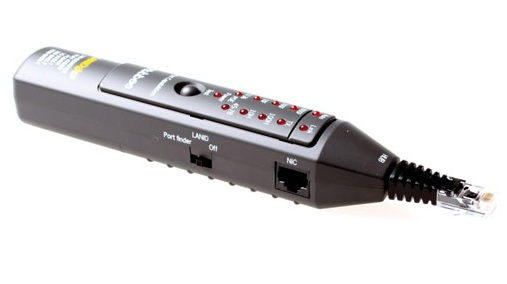

Intronics DX251 network cable tester

DX251 (LANIDgiga-giga LAN Device Status Identifier) The LANIDgiga is a high efficiency diagnostic tool for network installation and troubleshooting. With the LANIDgiga , network administrators can quickly confirm status of an active port. It will diagnose the problems during the LAN installation or maintenance on LAN devices or wall ports.

The unit indicates whether the LAN equipment being tested supports the following topologies and capabilities: 1000 BASE-T full duplex, 10/100 auto negotiation, 100 BASE -Tx full duplex, 100 BASE-Tx half duplex, 10 BASE-T full duplex, 10 BASE-T half duplex.

Also the unit integrated the PoE function, it identifies the existence of POE and the type of the PSE (power sourcing equipment) on the entire networks. The unit also equipped with a port-finder function. The port finder feature helps to find out the workstation.

- Two RJ-45 plugs (one for testing Switch/Hub directly, the other testing the NIC).
- To Check the existence of POE.
- Identifies the port speed up to Gigabit.
- With port finder function.
- Identifies if POI is on pair 12-36 (End Span) or on the 45-78 (Midspan).
