端口 & 界面
视频接口类型 |
DVI-I |
键盘接口类型 |
USB |
鼠标接口类型 |
USB |
麦克风输入数量 |
1 |
DC-IN插口 |
Y |

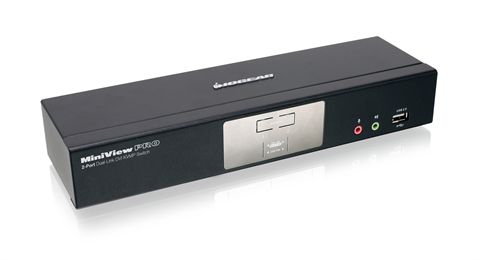

2-Port Dual-Link DVI KVMP Pro with 7.1 Audio
IOGEAR is pushing the envelope again with the GCS1782G, a 2-port Dual Link DVI KVMP switch with 7.1 audio, high-end 3D graphics support (NVIDIA® 3D Vision Ready), is compatible with most gaming keyboards and has an integrated 2-port USB 2.0 hub for peripheral sharing. Now users can control two computers and share multiple USB peripherals from a single keyboard, monitor, and mouse console.
It features IOGEAR's DynaSync* technology which allows the KVMP to read and remember the monitor's optimal display parameters and refresh rate, a function critical in today's graphic intense applications where large wide screen displays (up to 30") are required.
This powerful KVMP will increase efficiency and save equipment cost for applications where ultra-high video resolution, large or widescreen monitors are required such as:
- CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing)
- Desktop Publishing / Graphic Design / Video Editing
- Medical / Surgical / Diagnostic Displays
- And High-End Gaming, where high and ultra-high video resolution is demanded.
The patented asynchronous switching allows the user to independently switch applications between the connected computers. You can run one application on one computer while running another application on the other. Moreover, the integrated 2-port USB 2.0 hub is available for each computer to share multiple peripherals connected to the hub or via an external powered USB 2.0 hub. Access to such peripherals is performed on a one-at-a-time basis. Finally, the audio ports allow for connecting powered desktop speakers for stereo sound and a single microphone for audio input/output to each computer.
Features
- Share a professional quality monitor between two USB, DVI computers
- DynaSync* technology reads and remembers the monitor's parameters to eliminate delay or change of video resolution when switching between, or booting computers
- Compatible with gaming keyboards
- Supports high-end 3D graphics
- Maximum video resolutions:
- DVI-D Dual link: 2560 x 1600
- DVI-D Single link: 1920 x 1200
- Share a 7.1 surround sound system between two computers
- 2-port USB 2.0 peripheral hub to share printers or external hard drives
- Asynchronous hotkey switching between KVM focus, USB peripheral, and audio ports
- Complete keyboard and mouse emulation for error free booting and real-time switching
- Mouse emulation may be disabled to allow programmable buttons to function
- Supports MAC keyboard and special keys
- Firmware upgradeable
- All cables are included
