带宽
| 支持数据传输率 |
6, 9, 12, 18, 24, 36, 48, 54, 60, 90, 120, 180, 240, 270, 300Mbps |
性能
| 支持安全算法 |
128-bit AES, 128-bit WEP, 64-bit WEP, WPA |
联网
| 网络标准 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| 最高操作距离 |
97.53 m |
| 频段 |
2.4 - 2.483 GHz |
环境条件
| 运行湿度范围(H-H) |
5 - 90% |
| 储存温度范围 (T-T) |
-10 - 70 °C |
端口 & 界面
| 內置式 |
N |
| 主机接口 |
USB |
| 接口 |
WLAN |
| USB 端口数量 |
1 |
重量和尺寸
| 深度 |
6.35 mm |
| 重量 |
8.50 g |
| 宽度 |
50.8 mm |
| 高度 |
25.4 mm |
| 包装重量 |
68.03 g |
| 包装盒宽度 |
127 mm |
| 包装盒高度 |
196.85 mm |
其他功能
| 包装长度 |
25.4 mm |
| 遵守工业标准 |
RoHS |
| 兼容性操作系统 |
Windows XP, Vista, 7\nMac OS X v10.4 +\nLinux Fedora 10 (Kernel: 2.6.27.5-117) |
另外
| 产品色彩 |
Black |
| 数据传输率（最大） |
300 Mbit/s |
| 无线连接 |
Y |
| 连接方式 |
Wireless |
| 运行温度范围（T - T） |
0 - 50 °C |
USB 2.0, Wireless-N, 802.11b/g/n, 1T2R, 300Mbps, WPS, WEP,TKZP, AES, WPA, WPA2

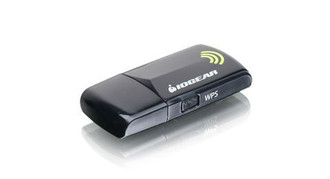

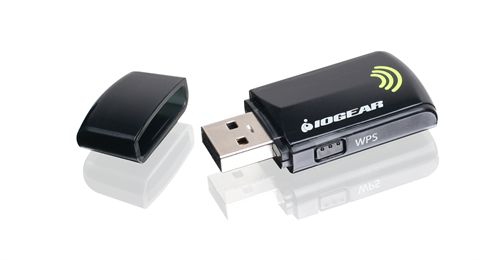

Compact Wireless-N USB Adapter
The new IOGEAR Compact Wireless-N USB Adapter allows you to connect your laptop or desktop to any Wireless-N network in your home or office. The Wireless-N (IEEE 802.11n) USB 2.0 Adapter is the perfect solution for those users who want to upgrade older computers to the next generation of wireless technology.
Using dual antennas (1T2R) this product provides data rates up to 300Mbps and reduces Wi-Fi dead zones in your wireless environment. This new standard supplies sufficient bandwidth for faster file transfer, music downloads, video streaming, on-line gaming & HD multi-media applications. In addition to the increased speed and coverage, you will be pleased to know that it is compatible with your existing 802.11b and 802.11g routers and access points. The unit also features a WPS (Wi-Fi Protected Setup) button. This button assures quick and secure network setup.
Enjoy improved range, speed and reliability today with the Compact Wireless-N USB Adapter from IOGEAR!
Features
- Add high-speed Wireless-N (802.11n) Internet access to any USB enabled computer
- 1T2R multiple radio technology improves effective throughput and range over existing 802.11 b/g products
- Compact and portable adapter plugs into your computer’s USB port
- Compatible Network Standards: IEEE 802.11n (up to 300Mbps) IEEE 802.11g (up to 54Mbps) IEEE 802.11b (up to 11Mbps)
- Push-button Wi-Fi Protected Setup (WPS) simplifies secure and easy wireless configuration
- WEP,TKZP, AES, WPA and WPA2 hardware encryption schemes
- Frequency Band Modulation Method: QPSK / BPSK / 16-QAM / 64-QAM
- Supports Ad Hoc and Infrastructure modes
- Supports USB 2.0 with up to 300Mbps transfer rate; backward compatible to USB 1.1 and 1.2
- Compatible with Microsoft Windows, Mac or Linux OS
