设计
| 类型 |
Server |
| 适用于 |
Home/Office |
| 侧窗 |
N |
| 格式要素 |
Rack |
| 3.5" 托架数量 |
2 |
| 5.25" 托架数量 |
1 |
| 扩展插槽数 |
4 |
| 内部3.5英寸托架数量 |
2 |
其他功能
| 液晶显示器功率 |
Y |
| 通风扇 |
1x 80mm |
| 可选风扇 |
1x 80mm |
2U Compact Rackmount microATX Chassis, mATX, mini-ITX, 2x 3.5" (Internal), 1x 5.25'' Drive Bays, 2x USB2.0, 4x Expansion Slots (Low profile), Black
- Industrial Chassis with 15" in Depth.
- Supports Front Access USB2.0 x2.
- Power and HDD LED.
- Power and Reset Switch.
- Support ATX PS2 Power Supply.
- Support 4 x Low Profile Add-on Cards.
- 80mm x1 Cooling Fan.
- Note: optional sliding rails TC-RAIL-20 will only work with new version of this chassis with 4 mounting holes on sides.

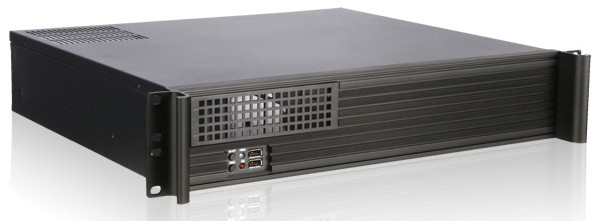

D-213-MATX is a reliable and stable 2U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 15" in depth and equipped with one intake 80mm cooling fans at front as standard for air ventilation. In addition, D-213-MATX supports a standard ATX PS2 power supply to meet regular server system applications.
