端口 & 界面
| DVI-I接口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| 主机接口 |
USB 3.0 (3.1 Gen 1) Type-A |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
联网
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
另外
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |

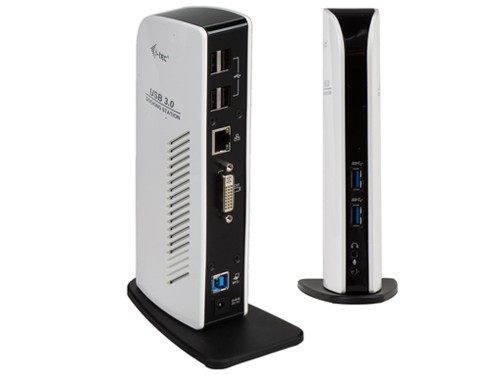

Docking Station Advance DVI Video USB 3.0
ADVANCE Series is the highest line of computer accessories, which allow you to use top technologies of products in modern design and exclusive package.
Our USB 3.0 Docking Station with a possibility to connect a wide range of popular peripherals, such as keybords, Ethernet network or an additional monitor. All these products are then connected to your laptop owing to one USB 3.0 cable (One-Touch-System). Universal Docking Station offers to its users more flexibility, because it is not dependent on laptop platform. Instead of this, the product features compact and elegant design, which was developed according to ultrabook line.
As display device you can use almost any screen, because the docking station is equipped by DVI-I connector with VGA or HDMI adapter for the modern LCD and plasma displays and TVs. Graphics chip even supports Full HD+ resolution (2048 x 1152 pixels). Thanks to own powerful graphic controller Docking Station doesn’t task your laptop.
<b>Characteristics</b>
- Device with extended ports for USB peripheries, audio devices, Ethernet 1000/100/10 Mbps, but also for connect of next DVI/HDMI/VGA monitor, TV or projector
- For using in the office (financial sector, graphics, ...), for presentation, fairtrades and at home too
- It allows you mirroring (Mirror Mode), extended screen (Extend Mode, Multi Screen Mode) or rotating (Screen Rotation Mode) of Your desktop on the second monitor
- Connecting and disconnecting devices without necessity of restart computer
- Delivered with DVI-VGA and DVI-HDMI reduction
In case of some problems with installation, technical difficulties or faulty fuctionallity of device find possible solution in FAQ bookmark first.
