性能
| 补充电源连接器 |
10 |
| 可拆卸电源连接器 |
Y |
| 电源保护功能 |
Input fuse, Over voltage, Overheating, Short circuit |
| 电源类型 |
Auto |
能量控制
| 效率 |
92% |
| 输入电压 |
12 V |
| 输出功率 |
90 W |

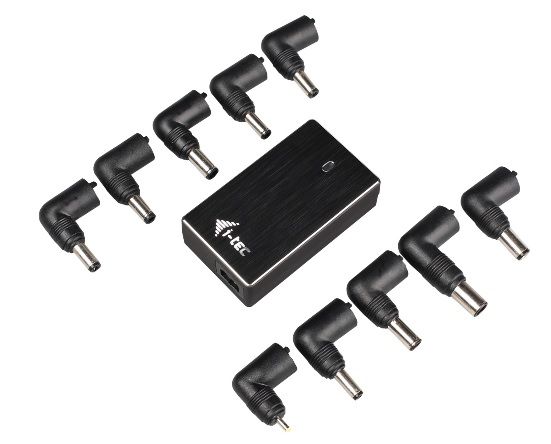

Car Slim Metal Adapter 90W 1x USB port with 10 notebook connectors for Acer, Asus, Compaq, Dell, HP, IBM, Lenovo, Sony, Toshiba, Fujitsu
METAL Series is the latest i-tec product line in a stylish elegant metal design and exclusive package.
This universal automatic car adapter with 90 W output is an ideal choice for the power supply of almost any laptop or other equipment requiring the voltage in DC 5 V – 20 V range. Output voltage is set automatically by tips – see on table bellow. Every tip is marked and it has acquired many patents and certificates already. This adapter features also additional USB port A-type DC 5 V / max. 2.1 A, which can be easily used to power most of the equipment with USB interface (e.g. MP3 players, Bluetooth hands-free, digital frames, most of cell phones, car navigation units, tablets, etc.).
In case of any problems with installation, technical difficulties or faulty fuctionallity of device find possible solution in FAQ bookmark first.
- Rated input voltage DC 12 V, max. 10 A.
- Outpout power (max.): 90 W (80 W for connector, 10 W for USB port).
- Efficiency: more than 92 %.
- Output voltage: DC 15 – 20 V (DC 15 V / 16 V / 18 V / 18.5 V / 19 V / 19.5 V / 20 V) it depends on connected tip, for USB port max. DC 5.25 V.
- Output current for DC 15-20 V: max. 5 A.
- Output current for DC 5 V USB A-type: max. 2.1 A.
- Over voltage protection, overheating protection, input internal fuse protection, current limit protection, output short circuit protection, open circuit protection.
- Anti-static safety design, strong fire proof protection case design.
