重量和尺寸
| 超重低音扬声器宽度 |
557 mm |
| 超重低音炮重量 |
32000 g |
| 超重低音扬声器厚度 |
587 mm |
| 超重低音扬声器高度 |
501 mm |
超低音音箱
| 超重低音频率范围 |
20 - 200 Hz |
| Subwoofer driver diameter (imperial) |
15 " |
| 超重低音功率有效值 |
800 W |
| 超重低音喇叭敏感度 |
109 dB |
| 超重低音扬声器类型 |
Active subwoofer |
| Subwoofer driver diameter |
380 mm |
| 超重低音扬声器的峰值功率 |
1600 W |
109 dB, 20 - 200 Hz, 115V/60Hz (6.3A) / 230V/50Hz (3.15 A), 32kg

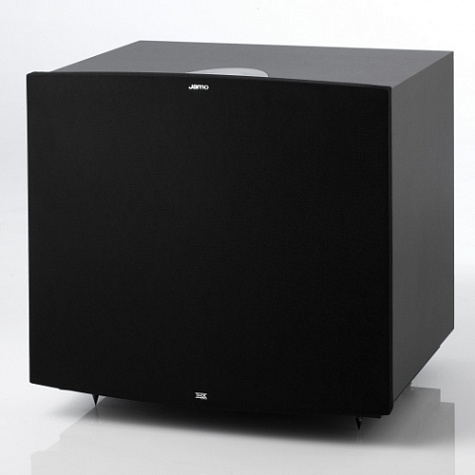

The D 600 SUB is built around a very powerful 380mm / 15inch low frequency driver, controlled by our Motional Feed Back (MFB) and equipped with a solid 400W (continuous output) class-D amplifier capable of delivering peak power in excess of 1600W.
The standby power consumption is less than 1W. To make it easy to place the D 600 SUB in the room it is equipped with adjustable Boundary Gain Compensation. The Boundary Gain can be adjusted in steps, and adjusts in the region between 55Hz and 20Hz with as much as -10dB at 20Hz.
All controls on the D 600 SUB are placed in the top of the cabinet, easily accessible. All functions are controlled by a dedicated digital processor that ensures maximum precision and repeatability.
State-of-the-Art Technology Jamo has developed driver units specifically for this high-end THX Ultra 2 system. Identical drivers used in both the LCR and surround-speakers result in perfect balance, and a 15"/1600W subwoofer equipped with Motional Feedback ensures dynamic, detailed and precise reproduction of even the lowest spectrum. The subwoofer is equipped with a unique touch interface, giving the user a variety of settings.
