端口 & 界面
| 耳机连接插孔 |
3.5 mm |
| 耳机输出端口 |
2 |
| BNC输入端口 |
8 |
| HDMI端口数量 |
2 |
显示器
| HD 类型 |
Not supported |
| 原机长宽比 |
16:9 |
2 x 7" LCD, 1024 x 768, 16:9/4:3, 400cd/m2, 900:1, 2.5kg, Black

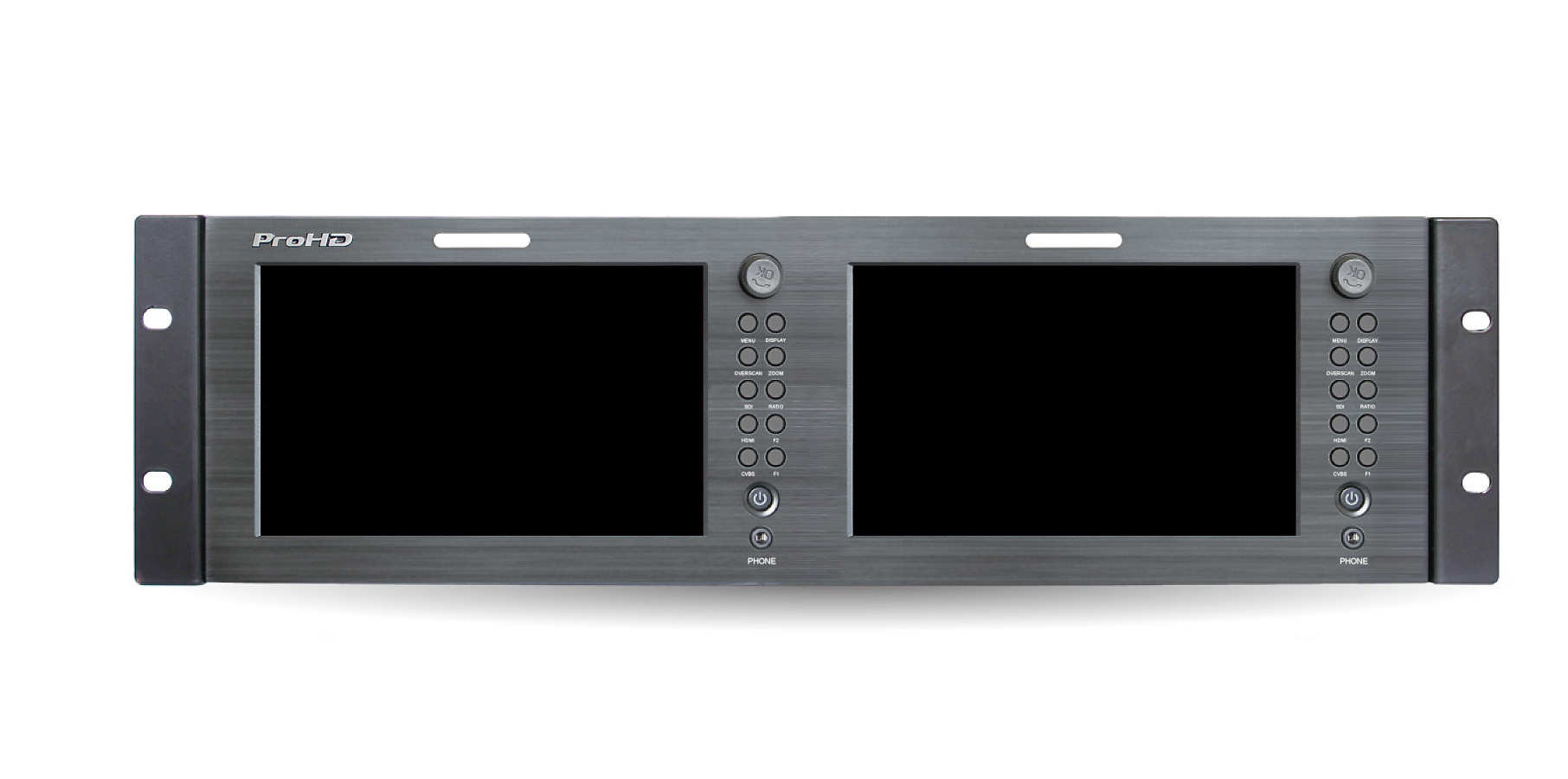

The DT-X71Hx2 is an affordable 2-in-1 monitor that offers wide connectivity options and all of the essential features required of a broadcast monitor.
- Two 7-inch LCD Panels (1024 x 768 pixels)
- 16x9 aspect ratio (4:3 adjustable)
- 160°H | 160°V viewing angle
- Brightness: 400cd/m²
- 900:1 contrast ratio
- Loop thru 3G/HD/SD-SDI input (for each display)
- HDMI input (for each display)
- Loop thru composite video input (for each display)
- L/R audio inputs (for each display)
- Front panel 3.5mm earphone jack (for each display)
- Power consumption less than 15 watts
- 12VDC power supply via 4-pin XLR connector
- 120VAC adapter provided
- Dimensions: 483 x 132 x 80mm
- Weight: 2.5kg
- Fits standard 19-inch EIA rack (3RU), +30° tiltable
- Underscan / overscan, safe area marker
- Zoom-in functionality (pix to pix)
- Image flip
- Front Tally lights (via RJ-45 connectors)
- Easy menu-driven setup
