端口 & 界面
DC-IN插口 |
Y |
视频端口数量 |
5 |
视频接口类型 |
DVI |
能量控制
输入电压 |
100-240 V |
接受频率 |
50/60 Hz |

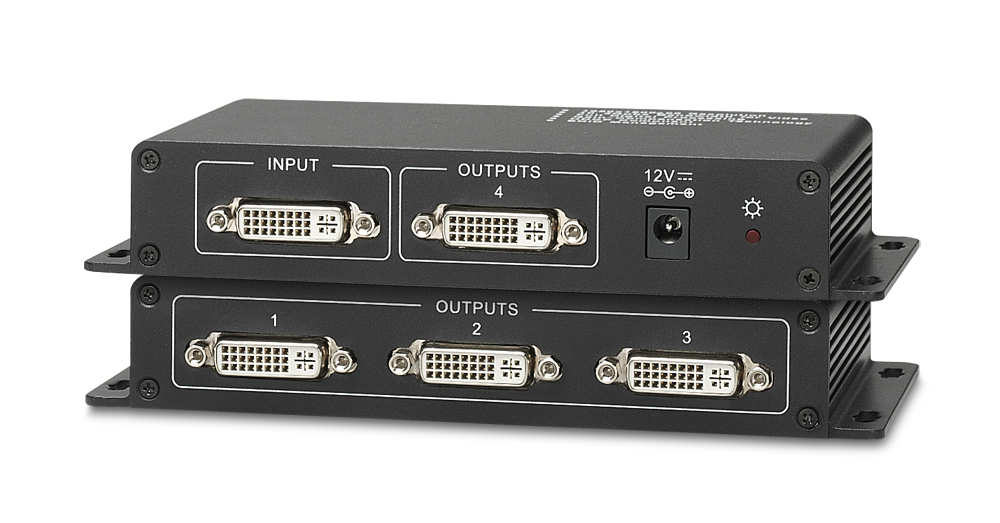

DVI 1x4 Splitter with Full HD 1080p and HDCP Management
The KanexPro 1x4 DVI distribution amplifier enables high-resolution DVI or HDMI signals to be routed to four or more displays. Supporting up to 1920x1080p@60Hz and PC resolutions up to 1920x1200@60Hz, this device is fully EDID and HDCP compliant.
The KanexPro 1x4 DVI splitter also features gain compensation and equalization to maintain signal integrity with zero jitter effects. Ideal for use with corporate boardrooms, lecture halls and digital kiosks that needs one source to be distributed in to four digital displays.
<b>features</b>
- Distribute single link DVI-D signals to four outputs
- Supports data rates up to 10.2 Gbps
- Supports full HD 1080p (1920 x 1080@60Hz)
- Computer resolution up to WUXGA (1920 x1200@60Hz)
- Automatic gain compensation and equalization
- HDCP Compliant
- Built-in HDCP Key Management & Authentication
- EDID and DDC compliant
- Front-panel LED indicator
- Supports full cascading of multiple DVI splitters
- Table/ Wall-mountable aluminum enclosure
- Universal power adaptable, (100Volt~240Volt AC, 50/60Hz)
