技术细节
类型 |
AV transmitter |
可支持的电缆类型 |
Cat5e, Cat6a, Cat6 |
最大传输距离 |
70 m |
带宽 |
10.2 Gbit/s |
端口 & 界面
RS-232 输入端口 |
1 |
RJ-45输出端口 |
1 |
HDMI输入 |
1 |
DC-IN插口 |
Y |

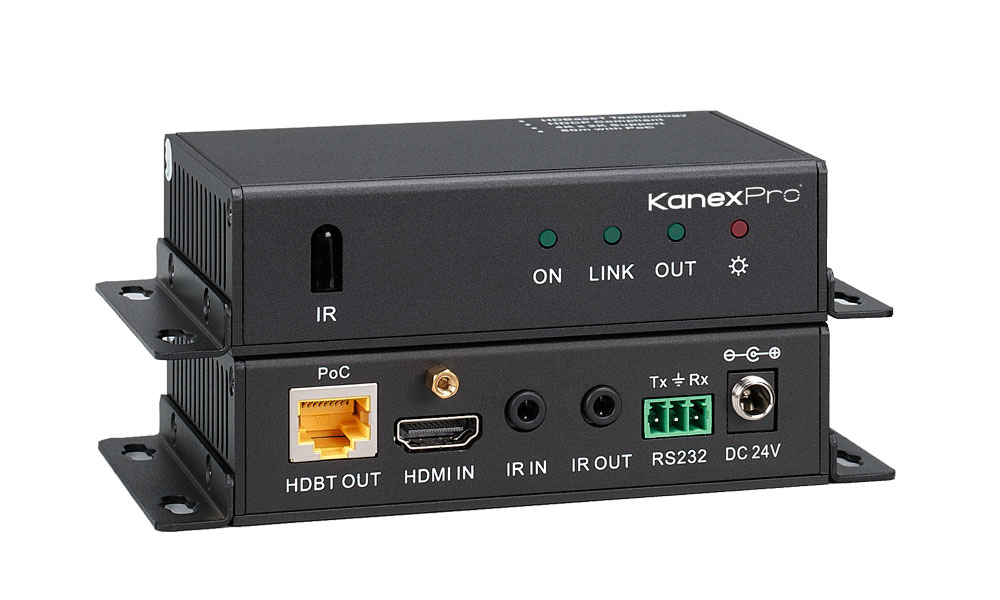

4K Compliant HDBaseT 70-Meter HDMI Extender w/ PoE - Sender Only
The KanexPro HDBASE70POET is an 4K compliant HDBaseT enabled transmitter (sender) designed to work with HDMI input devices such as cable box, Blu-ray players and more. The sender combines HDBaseT output to the receiver by providing bi-directional IR and RS-232 control extending out to a cost-effective Cat6a cable for expanded connectivity.
It supports Power over Ethernet (PoE) with compliant extenders and sources supporting the 70 meters HDBaseT lite technology.
Fully compliant with HDCP and EDID management built-in, the HDBASE70POET delivers HD video up to 4K and digital audio and control signals over CAT6 at distances up to 230 feet (70meters).
Perfect for deploying in classrooms, conference rooms and auditoriums equipped with HDBaseT based projectors and displays.
Note: Please use Shielded Twisted Pair CAT6 for best transmission and zero cross-talk.
<b>features</b>
- HDBASE70POET Sender only - designed for HDBaseT projectors and HDTV's.
- Extend HDMI/ DVI signals over single CAT6a cable
- Supports resolutions from 1080p/60@48bit to 4Kx2K
- Supports all 3D formats
- High bandwidth up to 10.2 Gbps
- HDCP & EDID compliant
- Bi-directional RS -232 protocol
- Bi-directional IR control
- Built-in LED indicators for signal/ work status
- Mountable aluminum enclosure
- Locking HDMI connector & power supply
- External power supply (100V-240V AC, 50/60Hz)
Note: We recommend using a metal STP connector for RJ-45. The shielded layer of cable must be connected to the connector’s metal shell for zero EMI noise and excellent transmission
