Kathrein ZTH 01

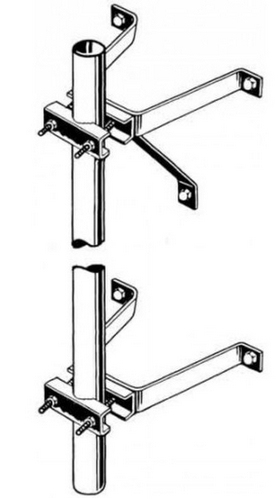

Mast wall-mount support set; for antenna masts @ diameters 27-60mm; max. collar 230mm; hot-dipped galvanised - For fixing masts with an allowable bending moment of max. 1650Nm.
- With extra strut and fi xture for upright alignment of the mast.
- In combination with ZAS 02 suitable for wall mounting of 60cm, 75cm and 90cm offset parabolic antennas.
- Max. forces exerted on the fi xing points (hole diameter of fi xing points: 11.5mm) if a 90cm antenna is used: - pressure 300N; - pull 300N; - shearing strain 835N.
- Packing unit/weight (pc./kg): 1 (4)/5.1.
