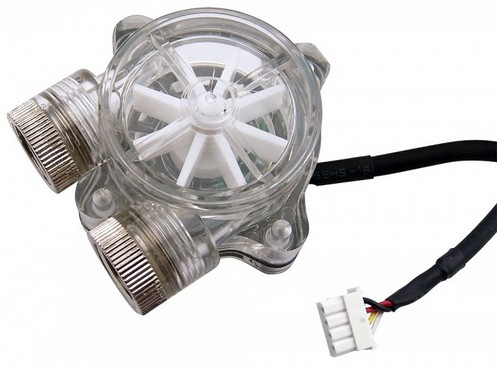

Koolance INS-FM15

Coolant Flow Meter The INS-FM16 flow meter provides visual and electronic indication of real-time coolant flow rate. Internal blue LEDs can be illuminated with optional components described below.

A frequency circuit (sold separately) multiplies the RPM signal to allow it to be read by most fan tachometer headers (such as those found on ATX motherboards). This signal is intended to allow fan detection software (including BIOS) to enable the appropriate alarm or shutdown procedure if the flow meter impeller stops rotating. The "RPMs" represent approximate flow meter coolant in mL/min, and not revolutions.

INS-FM16 is also compatible with Koolance TMS.

Flow rate range = 0.5-15 LPM (7.8-238 GPH). Fluid temperature range = 0 - 70°C (32-158°F). Maximum pressure = 2kgf/cm2 (28.5 psi) @ 25°C. Wire length is 19" (48cm), with product dimensions of approximately 2.2" x 2.2" x 1.3" (5.5cm x 5.5cm x 3.2cm).
