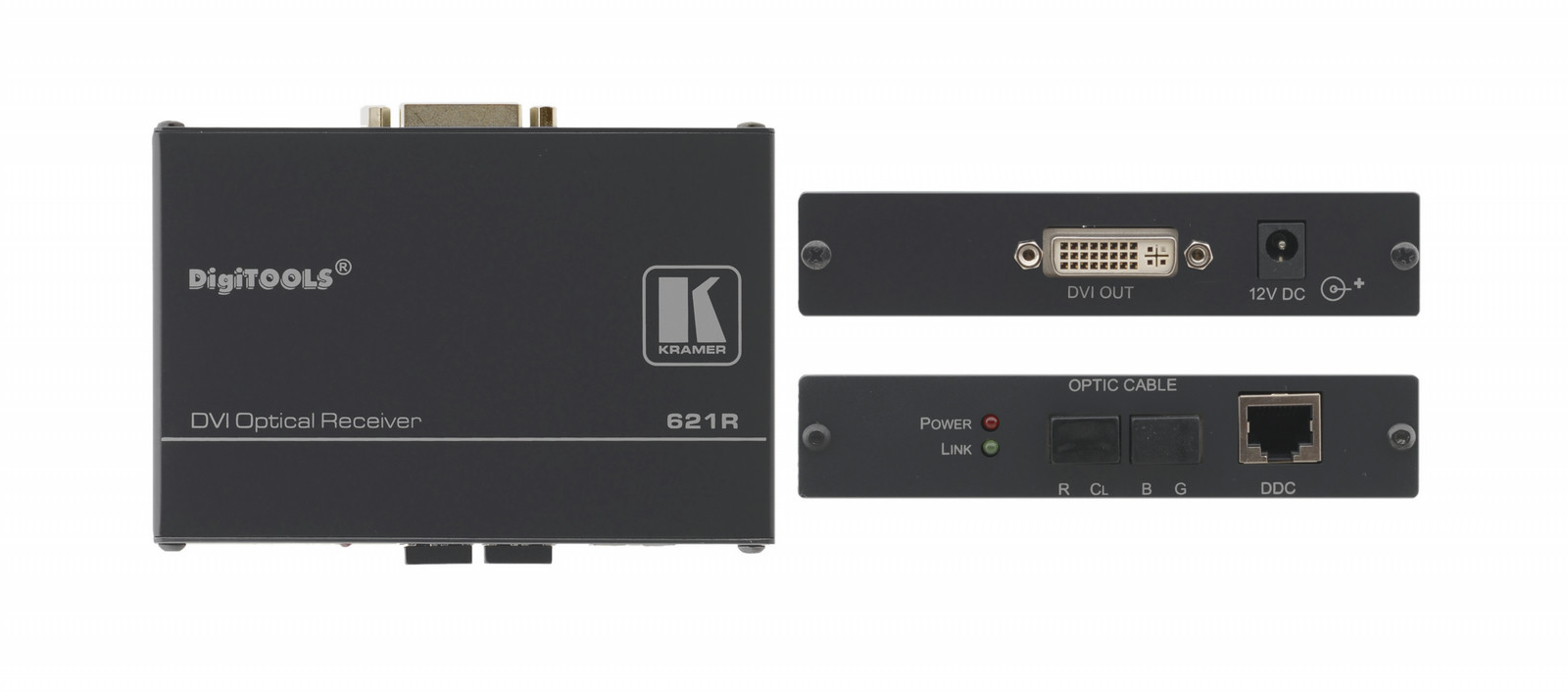

Kramer Electronics 621R AV receiver Black AV extender

DVI (HDCP) Optical Receiver The 621R is an optical receiver for DVI signals up to 1920x1200 at 60Hz. The 621T converts a DVI signal into an optical signal and the 621R converts the optical signal back to DVI.

- Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
- Resolution - Up to WUXGA (1920x1200 @60Hz).
- HDTV Compatible.
- HDCP Compliant.
- Output - DVI−D signal (on a DVI−I connector).
- System Range - Up to 100m (320ft) for full support of Power Connect and HDCP. Longer distances are possible by not using these advanced features.
- Power Connect System - Only one unit in a system, the transmitter or receiver, needs to be connected to a power source. All the systems units must have Power Connect to use this feature.
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5 and fiber optic with 4 simplex or 2 duplex LC fiber connectors.
- Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
