端口 & 界面
| DVI输出端口 |
1 |
| DC-IN插口 |
Y |
| RJ-45输入端口 |
1 |
技术细节
| 带宽 |
1.65 Gbit/s |
| 类型 |
AV receiver |
| 可支持的电缆类型 |
Cat5, Cat7, Cat6 |

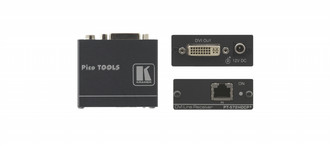

DVI (HDCP) over Twisted Pair Receiver
The PT−572HDCP+ is a DGKat™ twisted−pair receiver for DVI signals. The PT−571HDCP converts the DVI to twisted pair signal and the PT−572HDCP+ converts the twisted pair signal back to a DVI signal. The PT−572HDCP+−MD is certified for medical applications.
- Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
- Certified for Medical Applications - According to IEC 60601−1−2 (Electromagnetic Compatibility), (PT−572HDCP+−MD)
- HDTV Compatible.
- HDCP Compliant.
- DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
- System Range - Up to 90m (295ft) at SXGA, or up to 30m (98ft) at UXGA on shielded BC−DGKat524 cable.
- Up to 90m (295ft) at SXGA, or up to 70m (230ft) at UXGA on shielded BC−DGKat623 cable.
- Up to 100m (330ft) at SXGA, or up to 80m (265ft) at UXGA on shielded BC−DGKat7a23 cable.
- Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC−DGKat524, BC−DGKat623 or BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges.
- EDID PassThru - Passes EDID signals between the source and display.
- Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 270ft (90m) of each other.
- Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
