按钮
按钮数量 |
8 |
输入类型 |
push buttons |
背光按钮 |
Y |

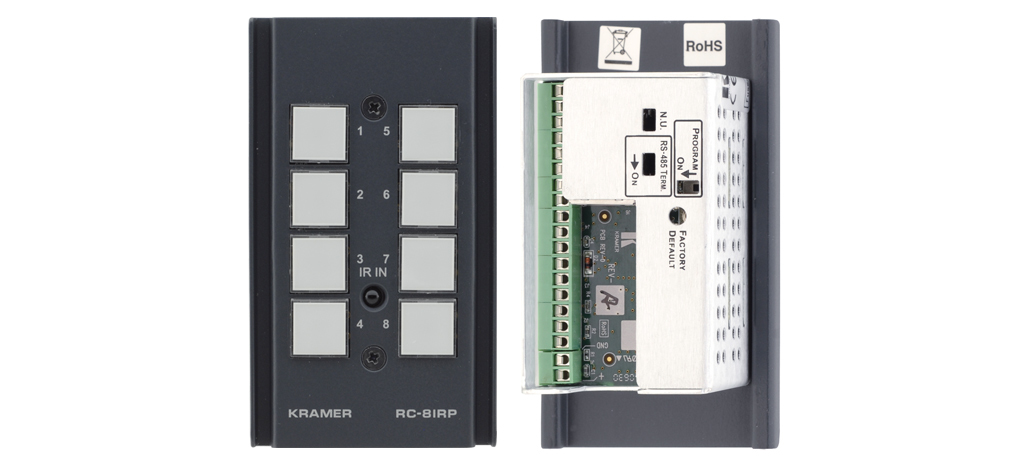

RC-8iRP, 8-button
<b>8−Button Table Mount Insert, Media & Room Controller with IR Learning</b>
The RC−8iRP is an 8−button media/room controller for multimedia rooms. It controls audio components, video components and other room facilities, such as lights, screens and projectors. It was specifically designed to fit inside the TC−PTP01−B ("Power Tower Plus") or TBUS−1A (with RC−8 insert frame).
- 8 Back-Lit & Label Capable Buttons - Up to 15 commands per macro and 4 toggling macros per button.
- Ethernet Port - Allows for easy setup with Kramer's Windows-based configuration software from an internet connection anywhere in the world.
Note: Although under certain conditions the Ethernet port of the RC-8iRP may be used to control an AV product, it is not designed for this purpose and we do not recommend doing this.
- 2 IR Ports.
- IR Learning Function - Learn commands from IR remotes.
- 2 Relay Contact Closure Ports - Conveniently control other room items related to the AV system such as raising and lowering drapes, the screen or the projector.
- 2 Bidirectional RS-232 and 1 RS-485 Ports - Control up to three additional devices via serial control protocols.
- Lock Out Feature - The RC-8iRP can be locked and unlocked to prevent tampering.
- Dimensions - 5.67cm x 3.09cm x 10.0cm (2.23" x 1.22" x 3.94") W, D, H.
- Wall Plate Size - 1 gang US.
