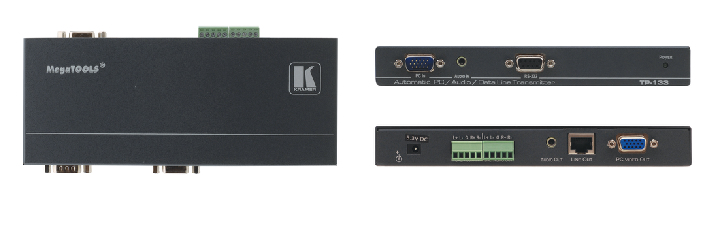

Kramer Electronics TP-133 video converter

Computer Graphics Video, Audio and Data over Twisted Pair Transmitter with Auto EQ and Skew The TP−133 is a high−performance, extended range twisted pair transmitter for computer graphics video, balanced/unbalanced stereo audio and bidirectional RS−232 data signals. The TP−133 converts input signals to twisted pair signals and the TP−134 converts the twisted pair signals back into the original formats.

- Inputs - 1 computer graphics on a 15−pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 balanced stereo audio on a terminal block connector, 1 RS−232 port on a 9−pin D−sub connector.
- Looping Inputs - Each input.
- Output - Twisted pair on a RJ−45.
- Resolution - Up to WUXGA, 1920x1200.
- RS-232 Port - Full−duplex, bidirectional transmission.
- Automatic Compensation - When used with a TP−134, the TP−134 automatically detects and compensates for the EQ losses and color delay differences in the TP cable.
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
- System Range - Up to 200m (656ft).
- Noise Protection - Increased level of protection against noise, spikes and interference in adverse environments.
- Compact MegaTOOLS - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
