技术细节
| 音频系统 |
stereo |
| 类型 |
AV receiver |
| 可支持的电缆类型 |
Cat5 |
| 最大传输距离 |
200 m |
端口 & 界面
| DC-IN插口 |
Y |
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
1 |
| VGA（D-SUB）输出端口 |
2 |
| VGA（D-SUB）端口数量 |
2 |
能量控制
| 工作电压 |
12 V |
| 电流 |
0.860 A |
| 外接电源转接器 |
Y |
2xRJ45, 2xVGA, 2xS/PDIF, 2x3.5mm, 1.1 kg, Black

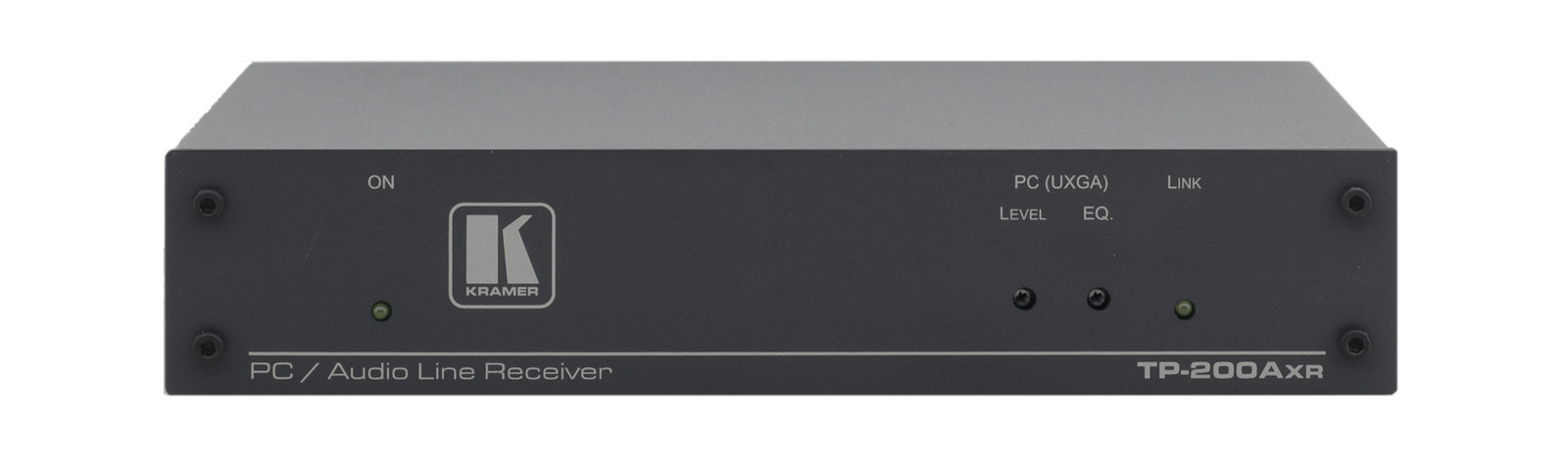

The TP−200AXR is a twisted pair receiver for computer graphics video and unbalanced stereo signals. The TP−100AXR converts the input signals into a twisted pair signal and the TP−200AXR converts the twisted pair signal back into two computer graphics signals, as well as two stereo audio plus two S/PDIF audio signals.
- Max. Resolution - WUXGA & 1080p
- HDTV Compatible.
- Twisted Pair Input - RJ−45 connector.
- Level (Gain) & EQ (Peaking) Controls.
- Audio - S/PDIF (RCA) & stereo audio (3.5mm) connectors.
- Looping CAT 5 Input.
- Selectable Input Signal Termination.
- Sync Polarity Settings - H & V switches for improved display compatibility with the CAT 5 outputs.
- System Range - Up to 200m (640ft). Greater distances possible depending on resolution and cable.
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
- Desktop Size - Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with an optional RK−T1 adapter.
