技术细节
| 类型 |
AV transmitter |
| 可支持的电缆类型 |
Cat5 |
| 最大传输距离 |
100 m |
端口 & 界面
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
1 |
| DC-IN插口 |
Y |
| VGA（D-SUB）输出端口 |
2 |

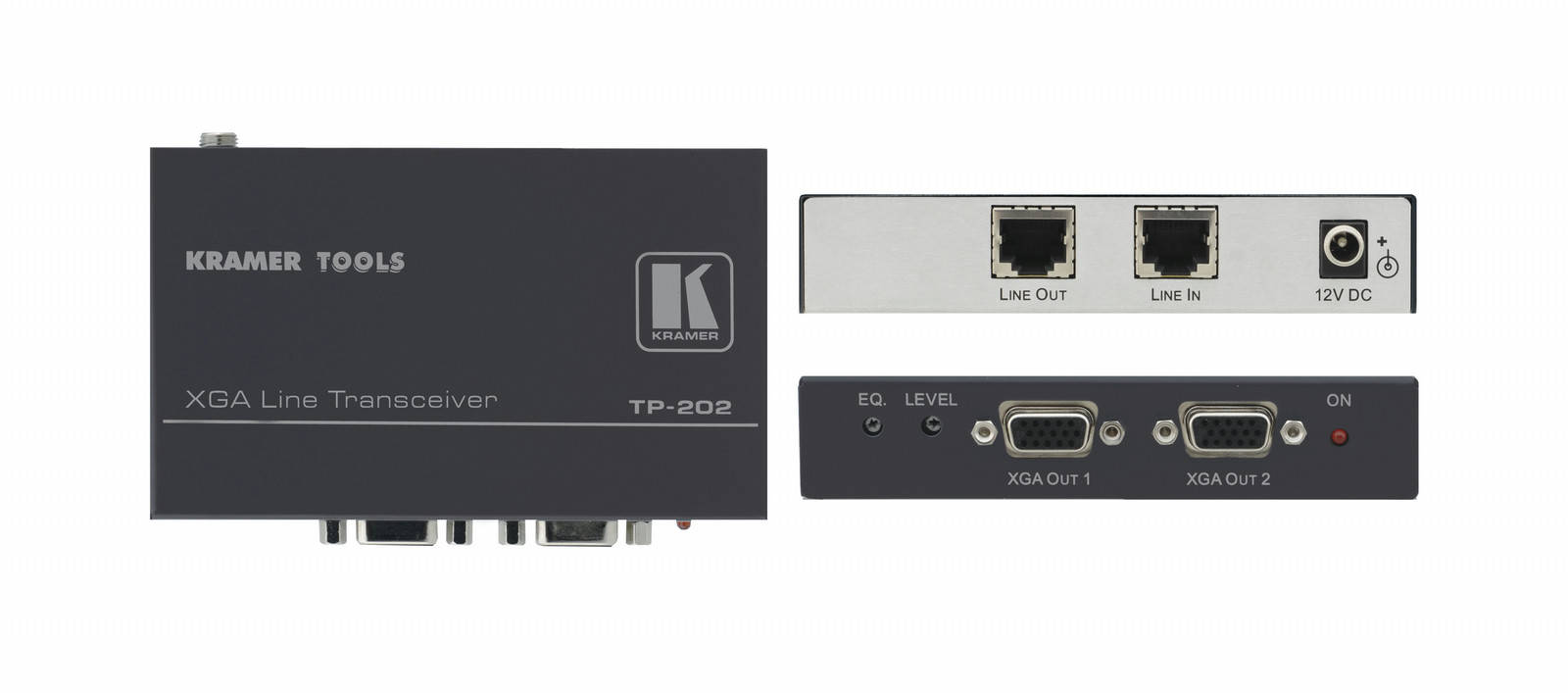

Computer Graphics Video over Twisted Pair Transceiver
The TP−202 is a twisted pair branching receiver for computer graphics video signals with resolutions up to and exceeding UXGA or HDTV signals. It takes a twisted pair signal and converts it into a computer graphics or HDTV signal available on two 15−pin HD outputs, and simultaneously re−transmits the original twisted pair signal to another compatible receiver.
- HDTV Compatible.
- Max. Resolution - WUXGA & 1080p.
- Long System Range - More than 100m (300ft).
- Expandable - Cascades up to 6 units.
- Cable - For standalone, use UTP (unshielded twisted pair) cable such as CAT 5.
- Sync Polarity Settings - H & V switches for improved display compatibility.
- Level (Gain) and EQ (Peaking) Controls - Recessed to prevent unintentional adjustment.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
- Size - Compact TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter. - compatible with RK-3T 19-inch rack adapter for mounting 3 Kramer TOOLS™ into a 1U rack space.
