Computer Graphics Video Scan Converter, PAL, NTSC

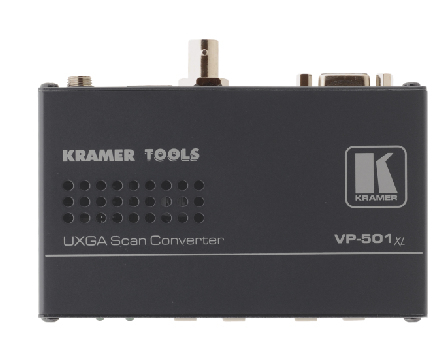

The VP−501xl is a scan converter for computer graphics video signals. It converts computer graphics video signals up to UXGA (1600x1200) to composite and s−Video (Y/C) signals simultaneously in either PAL or NTSC formats.
- Input Compatibility - Up to 1600x1200.
- AutoTrak™ Auto Set Up Technology - One−button auto setup that automatically sizes, shifts, and centers any input image on the display device.
- ProcAmp Control - Color, hue, sharpness, contrast, and brightness controls.
- Multi-Standard - PAL or NTSC (selectable).
- Multi-Format Capability - Composite video and s−Video (Y/C) simultaneously.
- Control - Front panel with on screen display.
- Multiple Memory Locations - Store and recall up to 4 presets (ProcAmp, input, output, zoom, and no input test pattern).
- Flicker Reduction.
- Built-in Test Patterns - Select 1 of 7 test patterns to display when no input signal is detected.
- Over Scan or Under Scan (selectable) with LED indicator.
- Freeze Frame with LED indicator.
- Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
