端口 & 界面
DC-IN插口 |
Y |
RJ-45输入端口 |
1 |
HDMI输入 |
6 |
技术细节
Full HD |
Y |
视频接口类型 |
HDMI |
HDCP |
Y |

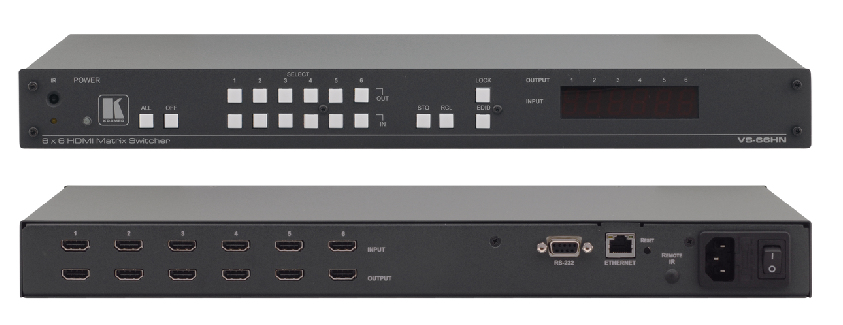

6x6 HDMI Matrix Switcher, 6.75Gbps, HDCP, 3D Pass-Through, I−EDIDPro, RS-232, Ethernet, IR, 19” (1U), Audio - E
he VS−66HN is a high−performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support - Deep Color, x.v.Color, Dolby TrueHD, Dolby Digital Plus, DTS−HD, and linear PCM 7.1 surround sound.
- 3D Pass-Through.
- Kramer Equalization & re‑Klocking Technology - Rebuilds the digital signal to travel longer distances.
- I-EDIDPro™ Kramer Intelligent EDID Processing - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- Output Disconnect - For each output.
- Front Panel Control Lockout.
- Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
- Flexible Control Options - Front panel, IR remote, RS−232 (K−Router Plus Windows−based software is included), Ethernet (Windows−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
- Worldwide Power Supply - 100−240V AC.
- Standard 19” Rack Mount Size - 1U. Rack "ears" included.
