端口 & 界面
| 主机接口 |
PCIe |
| 內置式 |
Y |
| IEEE 1394/Firewire(火线)端口数量 |
2 |

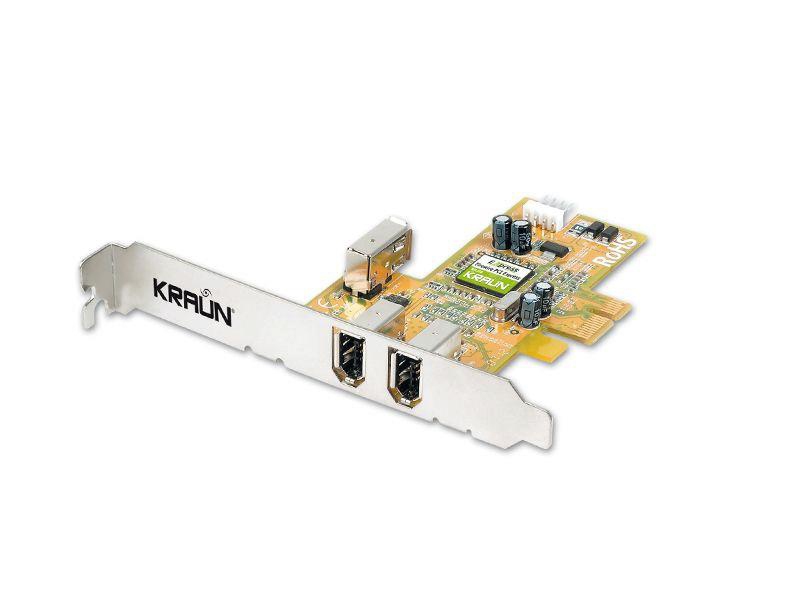

IEEE 1394 Firewire PCI Express
- PCI Express Card
- Compliant with 1394 Open Host Controller Interface Specification 1.1
- IEEE Std 1394a-2000 fully compliant cable ports at 100, 200 and 400 Mbps
- Provides two external and one internal (sharing) FireWire ports
- Built-in 4-pin power connector for receiving extra power supply from system
- IEEE Std 1394-1995 and IEEE Std 1394a-2000
- Hot-Swapping feature
This PCI Express Card allows to add to your PC 2 external Firewire ports tipe A 6 pin with high transfer rate.
