技术细节
| 声压等级不确定度 |
3 dB |
| 空载转速 |
3400 RPM |
| 木材切削深度 |
80 mm |
| 铝切削深度 |
5 mm |
| 额定输入功率 |
500 W |
| 冲程长度 |
19 mm |
| (45º) 斜切角度 |
Y |
| 声压级 |
78 dB |
| 振动发射值 (木头) |
11.9 m/s² |
| 振动发射值 (金属) |
9.4 m/s² |
| 声功率级 |
89 dB |
| 除尘风机 |
Y |
| 声功率等级不确定度 |
3 dB |

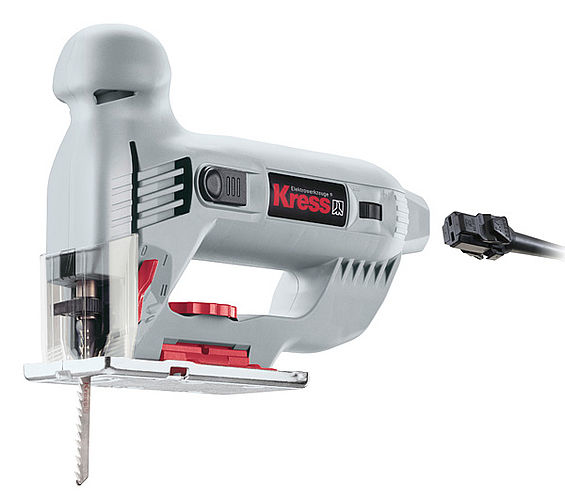

Jig saws 500 ST E
- 500 watt MAXX Power motor
- Full wave control electronics to ensure optimum working conditions for the material in question
- Two adjustable pendulum stages for quick sawing and optimum working conditions for the material in question; zero position ideal for sawing metal and narrow curves
- Blower device ensures unimpeded view of cutting site
- x-mal-click system enables tool-free replacement of saw blade
- Tool-free adjustment of saw plate for 22.5 and 45º mitres
- Plexiglas screen ensures unimpeded view of cutting site and improves suction power
- Vacuum cleaner connection
- 4 m rubber mains cable with patented quick-lock system
- 4 m and 6 m cables can be delivered as accessories
