端口 & 界面
| 光纤通道端口 |
1 |
| DC-IN插口 |
Y |
| 通过以太网（PoE）供电端口数量 |
1 |
联网
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 双机热备系统 |
Full |
| Auto-negotiation 自动协商功能 |
Y |
性能
| 发射功率（最小） |
-19 dBmW |
| 最大传输距离 |
2000 m |
| 光纤模式结构 |
Single-mode |
| 发射功率（最大） |
-14 dBmW |
| 波长 |
1310 nm |
| 波分复用（WDM） |
Y |
| 接收功率（最大） |
-14 dBmW |
| 接收功率（最小） |
-31 dBmW |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 连接方式 |
Wired |
| 包括 AC 适配器 |
Y |
| 数据传输率（最大） |
100 Mbit/s |

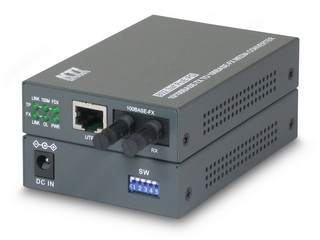

10/100Base-TX to 100Base-FX Media Converter, 1310nm, 2km, 210g
The 350 series are designed to convert 10Base-T or 100Base-T signals to/from 100Base-FX fiber signals. They are used to extend the connection distance between two Ethernet devices via fiber cable transparently with no performance degradation. The variety of fiber options supported includes not only multimode, short reach up to long reach single mode fibers, but also Bi-Di WDM and CWDM fiber network applications. Because of 802.3af compliance, the converters can draw the power via Cat.5 cable connected to a PoE PSE switch or mis-span injector. This feature makes
the converter ideal for remote areas of a network without AC power outlets.
<b>Important media converter functions:</b>
- Smart forwarding which can auto adapt the conversion to get the minimum latency according tothe connection speed
- Link fault pass through between two different media cables
- Transparent conversion for 802.1Q tagged packets
- Far end fault function on the fiber cnnection
- Manual (forced) configuration for the twisted-pair port to support non-auto devices
<b>Advanced media converter functions:</b>
- Support fiber remote loopback test for advanced installation
- Provide remote twisted-pair connection monitoring
- Support Din-rail mounting in Din-rail closet
- Support being powered by PoE via Cat.5 and USB in addition to typical AC power adapter
