数据传输
| MAC 地址表 |
8000 entries |
| 支持数据传输率 |
10/100/1000 Mbps |
| 交换容量 |
1 Gbit/s |
| 最大数据传输率 |
1 Gbit/s |
联网
| 端口镜像 |
Y |
| 广播风暴控制 |
Y |
| IGMP侦听 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 链路汇集 |
Y |
| 生成树协议 |
Y |
| 流量控制支持 |
Y |
| 动态主机配置协议客户 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
16 |
| DC-IN插口 |
Y |
| SFP/SFP+端口数量 |
4 |
| 千兆以太网(铜)端口数量 |
12 |
| Combo SFP 端口数量 |
4 |
协议
| 管理协议 |
Web/Telnet/SSH/HTTPS/SNMP |
其他功能
| 液晶显示器功率 |
Y |
| 无线局域网连接 |
N |
| 网路功能 |
Gigabit Ethernet |
| 电源类型 |
AC/DC |

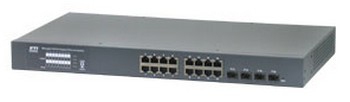

Managed 16-Port Gigabit Ethernet Switches with 4 SFP Slots
Product Description
The 16-port Managed Gigabit Ethernet Switches are standard L2 switches that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switches have 12 10/100/1000Mbps copper ports and 4 combo ports with copper and Gigabit SFP slots. The switches support console CLI, Telnet CLI, Web GUI and SNMP interface for switch management. The network administrator can logon the switch to monitor and configure port operating mode, Quality of Service, and powerful L2 switching functions such as VLAN, IGMP, RSTP etc. In addition, the switches are also featured with security functions such as IEEE802.1x and ACL.
Technical Specifications
- Provides 16 10/100/1000Mbps RJ-45 and four Gigabit SFP slots (4 combo ports)
- Provides in-band console CLI, web and SNMP management interfaces
- All copper ports support auto-negotiation and auto-MDI/MDI-X detection
- Power saving support
- The SFP slots support 1000BASE-X SFP transceivers
- Provides Gigabit full wire speed forwarding
- Supports 802.3x flow control for Full-duplex and backpressure for Half-duplex
- Support jumbo frames
- 19” rack mountable
- Both AC powered model and DC powered model are available for choice.
