产品特点
设备兼容性 |
Label printer |
类型 |
Rewinder |

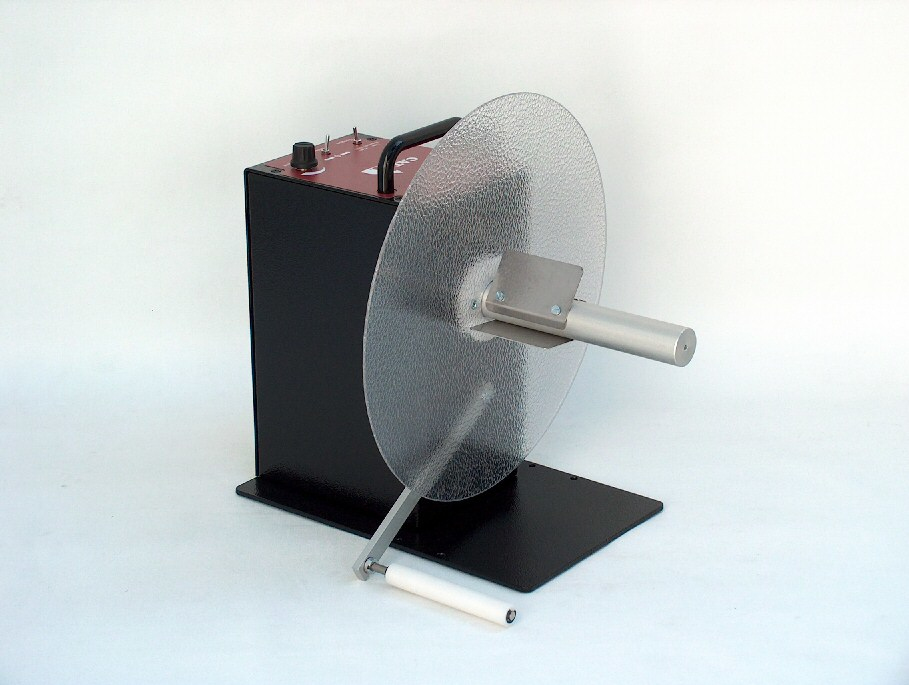

Heavy-Duty Label Rewinder, w / Tension Arm, 300
LABELMATE’s Constant Adjustable TorqueTM (“CAT”) technology has made the silent, easy-to-use CAT-3 the “Industry Standard” Label Rewinder. There are no awkward troublesome belts or clutches.The CAT-3-STANDARD handles labels up to 155 mm wide and will wind a roll of labels up to a 300 mm diameter. Torque and Direction are fully controllable from the Control Panel. Dual torque ranges provide plenty of power for use with a LABELMATE Slitter, too.
For wider labels up to 255 mm, choose the CAT-3-10”.Model CAT-3-ACH includes an Adjustable Core Holder that accepts any core size from 25 mm to 101 mm in diameter and up to 155 mm in width.The optional Adjustable Paper Guide APG-CAT with movable arm can be installed in minutes on the base plate of the CAT-3-ACH or CHUCK. This inexpensive accessory guides the outer edge of the label roll as it’s being rewound to ensure even roll alignment.The CAT-3-CHUCK includes LABELMATE’s durable “Quick-Chuck”TM quick-locking Core Chuck, permitting the fastest loading and unloading of cores and label rolls.The CAT-3-CHUCK is ideal for label slitting applications, high-volume production environments, or anywhere the ultimate convenience in Rewinders is desired. The CAT-3-CHUCK is available for 38-,40-,44-, 50, 70, 76- and 100 mm cores. The CAT-3 handles any rewind job and with its “HIGH” torque range can also power the LABELMATE S-100 or S-200 Label Slitters.The CAT-40G is gear motor driven for more torque. It accepts bigger rolls with a diameter up to 400 mm. It is equipped with the LABELMATE “Quick-Chuck”tm quick-locking Core Chuck.
