联网
支持ISDN连接 |
Y |
用户数量 |
25 user(s) |
安全
防火墙 |
VPN, NAT |
认证方法 |
PAP, CHAP, MS-CHAP, MS-CHAPv2 |
虚拟专用网信道数量 |
3 |
MAC(媒体存储控制)地址过滤 |
Y |
以太网LAN特性
布线技术 |
10/100/1000Base-T(X) |
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
端口 & 界面
广域网接口 |
Ethernet (RJ-45) |
光纤通道端口 |
1 |
USB 端口数量 |
1 |
DC-IN插口 |
Y |
协议
路由协议 |
RIP-2 |
DMZ支持 |
Y |
数据链路协议 |
ARP, proxy ARP, BOOTP, LANCAPI, DHCP, DNS, HTTP, HTTPS, IP, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RIP-1, RIP-2, RTP, SIP, SNMP, TCP, TFTP, UDP, VRRP |
管理协议 |
TFTP, HTTP, HTTPS, Telnet/SSL, SSH, SNMP, TACACS+ |
IP电话协议 |
SIP ALG |
动态主机配置协议客户 |
Y |
动态主机配置协议服务器 |
Y |
支持网络协议 |
PPPoE, Multi-PPPoE, ML-PPP, PPTP (PAC/PNS), IPoE (w/wo DHCP), RIP-1, RIP-2, VLAN, IP |
ADSL的特点
ADSL说明书 |
ADSL, SDSL, VDSL |
xDSL连接类型 |
DSL |
另外
以太网连接器 |
Y |
连接方式 |
Wired |
包括 AC 适配器 |
Y |
以太网路(RJ-45)连接接口数量 |
3 |

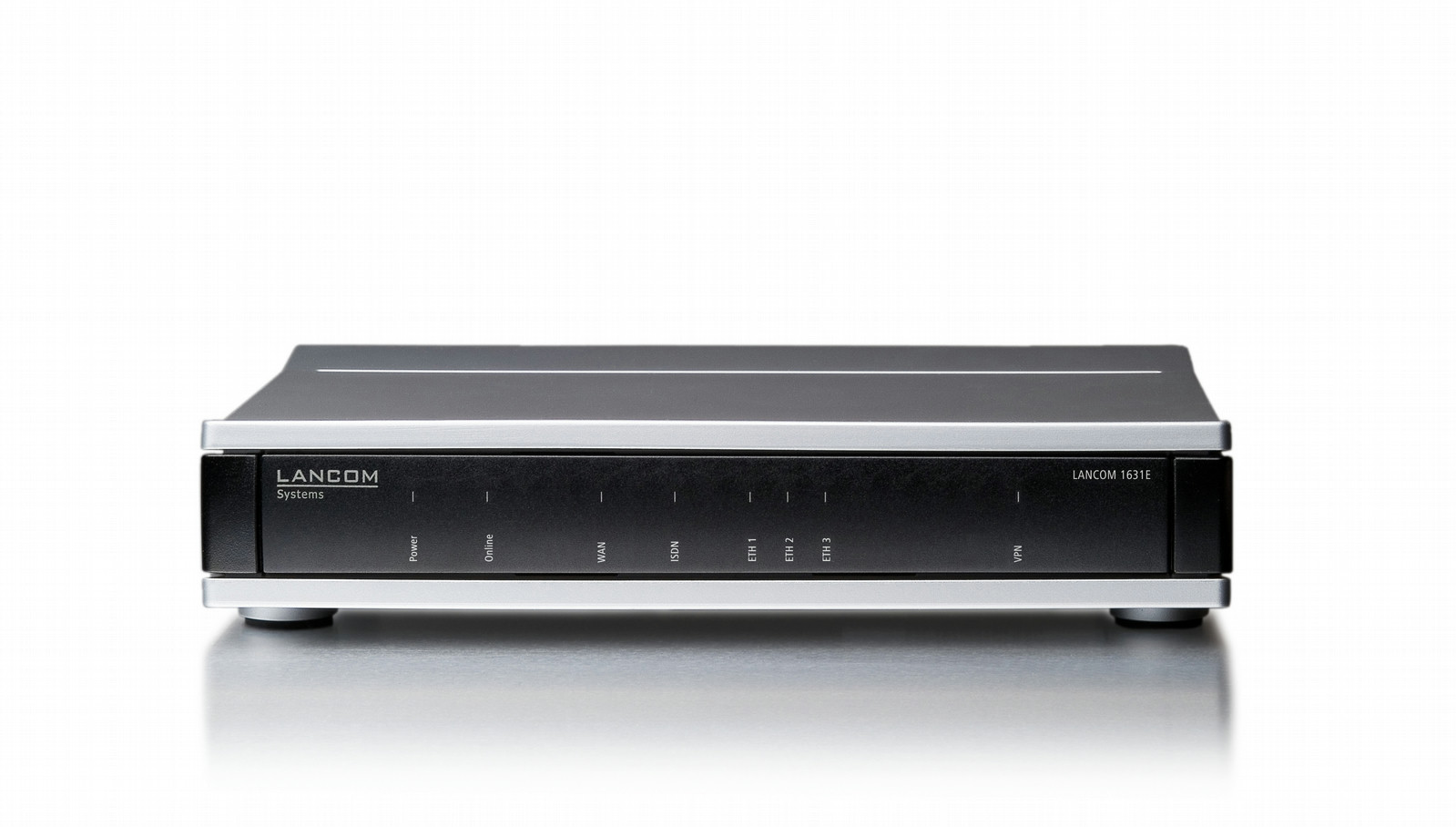

LANCOM 1631E - DSL, VPN, 3x1000TX, 1xISDN-Backup, USB
The LANCOM 1631E is the right choice for small businesses looking to set up a broadband Internet connection with professional network functions. This flexible device can be connected to multiple types of modems and offers thus sophisticated capacities for the Internet access of small and medium-sized companies. Comprehensive VPN functions allow the secure and high-performance connection of branch offices. The four ports of the integrated Gigabit Ethernet switch ensure maximum performance and are also energy-efficient as per IEEE 802.3az: If no data is transmitted over an interface, its power consumption shuts down automatically.
More performance.
The LANCOM 1631E provides a balanced and modern hardware platform for reliable operation of enterprise networks around the clock. As a professional business router, the device meets with high standards in the areas of network virtualization, security and VPN networking. At the same time its computing power, storage capacity and the high-speed interfaces ensure excellent network performance even with heavy data traffic.
More security.
For connecting small offices or setting up multi-national branch networks - VPN specialist LANCOM stands for fast, secure and cost-effective communications. The LANCOM 1631E is ideal for branch offices and smaller companies that want to install a secure VPN: the VPN Gateway of the router allows for the installation of 3 simultaneous IPSec channels. The LANCOM 1631E has a comprehensive range of security features. The stateful-inspection firewall with intrusion prevention and Denial-of-Service protection is an effective barrier to attacks from the Internet. The user-friendly interface makes it easy to set up the object-oriented firewall. Optionally available, the Content Filter provides effective protection for up to 25 users while they surf the World Wide Web. Internet connectivity can be reliably assured, for example with a cellular backup via USB or the integrated ISDN interface, thus assuring smooth, round-the-clock operations. Flexible bandwidth management guarantees the availability of all applications in the local area network as these can be prioritized with a comprehensive range of Quality-of-Service features.
More management.
LCMS, the LANCOM Management System, is a free software package for the LANCOM 1631E. It caters for the configuration of the device, remote maintenance and network monitoring. The central component of LCMS, LANconfig, is used to configure the LANCOM 1631E and other LANCOM devices on the network. The extensive range of features and the configuration wizards make the router quick and easy to set up. LANmonitor offers detailed, real-time monitoring of parameters, it provides access to log files and statistics, and it can carry out a detailed trace-protocol analysis. Other functions in LCMS include the GUI for firewall setup, automatic backup of configurations and scripts, and the intuitive folder structure with convenient search function.
More virtualization.
The LANCOM 1631E helps to make effective use of IT resources. Thanks to Advanced Routing and Forwarding (ARF), the device supports the parallel setup of two independent networks with their own dedicated DHCP, DNS, routing and firewall settings. This allows two separate networks for different groups and applications to be operated on a single physical infrastructure.
More reliability for the future.
From the very start, LANCOM products are designed for a product life of several years. They are equipped with hardware dimensioned for the future. Even reaching back to older product generations, updates to the LANCOM Operating System—LCOS—are available several times a year, free of charge and offering major features. LANCOM offers unbeatable safeguarding of your investment.
