产品特点
| 调平精度(±) |
0.2 mm/m |
| 最大范围 |
20 m |
| 激光类 |
2 |
| 光束方向 |
Horizontal |
| 激光二极管 |
635 nm (< 5 mW) |
| 激光定位线数目 |
3 |
电池
| 操作时间 |
25 h |
| 电池类型 |
AA, LR6 |
| 支持的的电池数量 |
4 |
| 电池电压 |
1.5 V |
2 mm - 10 m, 2M < 5 mW, 4x 1.5 V, IP54, 85 x 130 x 160 mm, 820 g

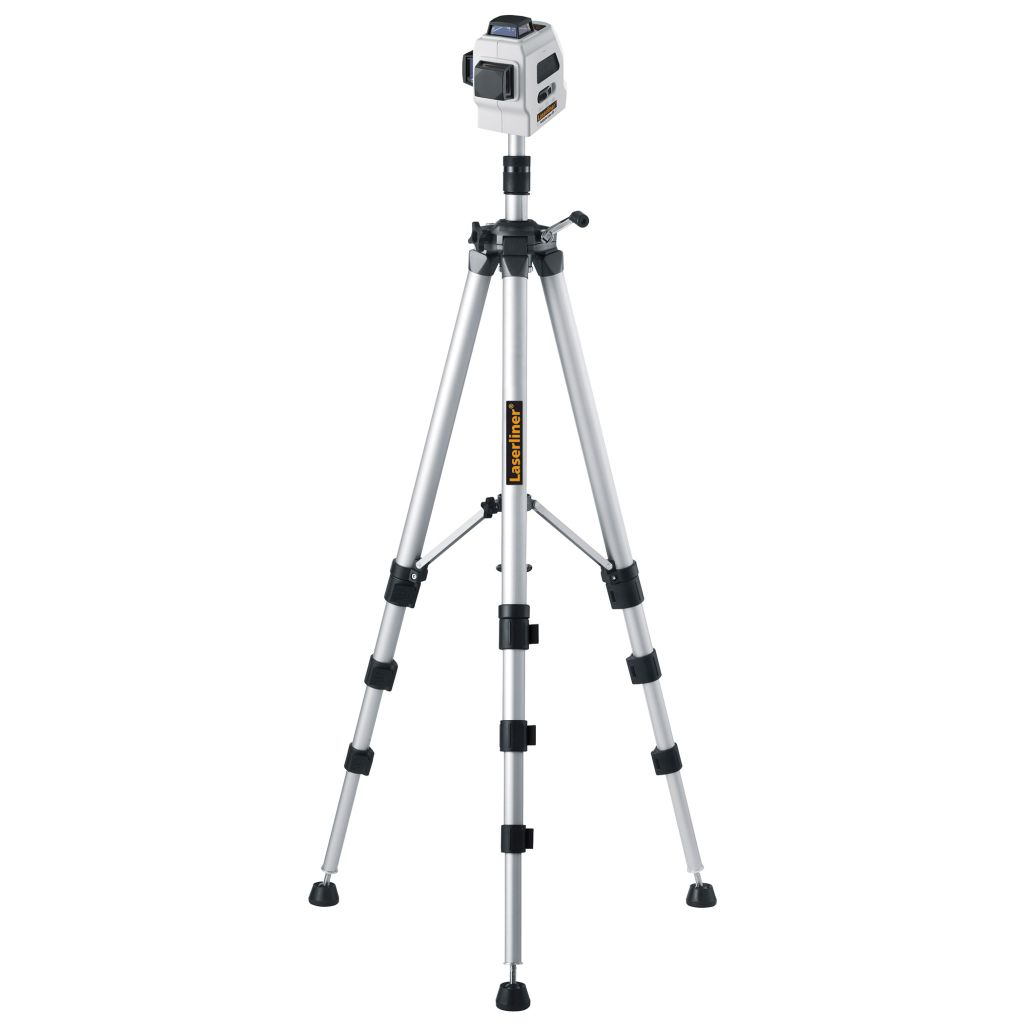

AutoLine-Laser 3D
– PowerBright + laser with 3 extremely bright 360 degree laser lines
– Straight forward plumb function using laser crosses
– Automatic Level: automatic alignment by virtue of a magnetic pendulum system.
– Tilt mode is an additional feature that permits gradients to be laid out.
– Optimised for work close to the ceiling
– Out-Of-Level: Is indicated by optical and acoustic signals when the unit is outside its self-levelling range.
– RX-Ready: The integrated hand receiver mode detects the laser lines with the optional laser receiver RX up to a max. of 50 m radius – ideal for all interior and exterior applications.
– Transport Lock Compact Tripod 300 cm
– High-quality, very compact crank tripod made of aluminium
– Special combination feet (rubber steel tips) facilitate adaptation to different surfaces.
– 5/8“ thread adapter
