产品特点
调平精度(±) |
0.1 mm/m |
最大范围 |
50 m |
激光类 |
2M |
激光二极管 |
635 nm (< 5 mW) |
激光束颜色 |
Red |

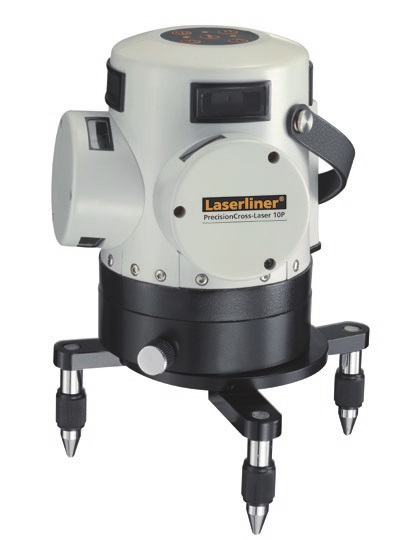

PrecisionCross-Laser PCL 10 RX
High-precision cross-line laser with 10 line lasers and laser receiver
- The 4 horizontal laser lines project a homo-geneous 360° laser line. A total of 6 vertical laser lines project 2 uniformly bright 360° laser lines. These are aligned at right angles to one another - ideal for all alignment jobs, even floor applications.
- Sensor Automatic : electronic positioning motors controlled by temperature-stable sensors make alignment automatically. The RX 51 laser receiver detects the laser lines in any ambient light up to a max. of 50 m radius – ideal for all interior and exterior applications.
- Homogeneous horizontal and vertical 360° laser lines: Enable the device to be used like a rotary laser.
- External laser modules allow the vertical laser lines to be positioned near to the wall.
- Laser crosses at the top and bottom allow for a simple and precise plumb function.
- The housing can be rotated with a vernier adjustment mechanism and moving base plate to permit exact positioning of the laser.
- Out-Off-level : is indicated by optical signals when the unit is outside its self-levelling range.
- External charger with high-performance rechargeable batteries
- Swivelling feet with height adjustment function
