卫星音箱
| 卫星音箱类型 |
2-way |
| 卫星扬声器阻抗 |
4 Ω |
| 卫星音箱数量 |
2 |
扩音器
| 扩增设备 |
Y |
| 扩增设备类型 |
Amplifier |
| 功放分类 |
A/B |
| 输出功率放大器 |
700 W |
技术细节
| 频率范围 |
35 - 19000 Hz |
| 磁石式 |
Ferrite |
| 高频扬声器 |
Y |
重量和尺寸
| 超重低音扬声器尺寸（宽x深x高） |
480 x 635 x 570 mm |
| 卫星音箱尺寸（宽x深x高） |
275 x 260 x 430 mm |
Compact 15" active PA System, 35 - 19000Hz, Amplifier Class A/B, 6.3 mm Jack, RCA, XLR, black

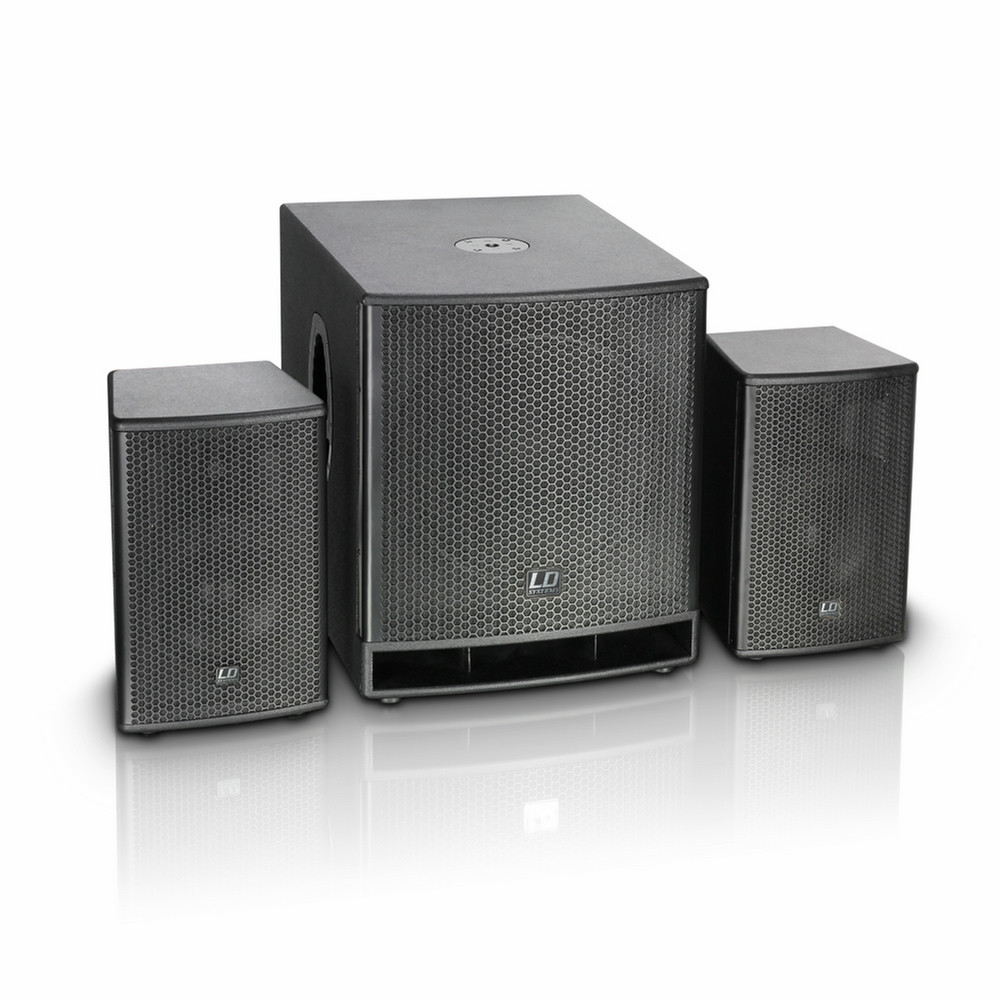

The DAVE 15 G3 is a powerful active compact system. A bass reflex subwoofer with a 15" driver constitutes the massive, powerful foundation. The satellites with 8" drivers and HF horns are responsible for a natural sounding, assertive midrange and transparent treble. The subwoofer incorporates a 2.1 power amp module that drives the components of the DAVE 15 G3 with 2800W of Peak power.
The LD LECC DSP digital processor ensures perfectly tuned functioning of the system. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.
The thoroughly professional features of the DAVE 15 G3 active PA system include sturdy multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD "Evolutive" handles of the subwoofer are especially worthy of mention: the innovative design with a metal ring handle permits secure, convenient handling from all sides. For accurate vertical orientation, the speaker supports of the satellites are vertically adjustable by ± 13,5° max. in seven increments.
Speaker protection covers and a castor board with a lashing strap for simple transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.
Like all systems in the DAVE series, the DAVE 15 G3 is suitable for portable use and for permanent installation.
