扬声器
| 低音炮 |
Y |
| 高频扬声器直径 |
1 " |
| 高频扬声器 |
Y |
| 内置超低音音响 |
Y |
| 功放分类 |
A/B |
| Woofer diameter |
101.6 mm |
| Tweeter diameter |
25.4 mm |
| 低音炮 寸法 |
4 " |
| 高音喇叭驱动器数量 |
1 |
| 放大器 |
Built-in |
| 低音单元驱动器数量 |
2 |
端口 & 界面
| 麦克风/音频输入插孔 |
Y |
| XLR 音讯连接输入端口 |
Y |
| 耳机连接插孔 |
6.3 mm |
设计
| 类型 |
Freestanding Public Address (PA) system |
117dB, 45 - 19000Hz, 29.1kg

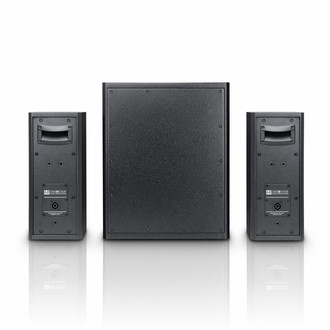

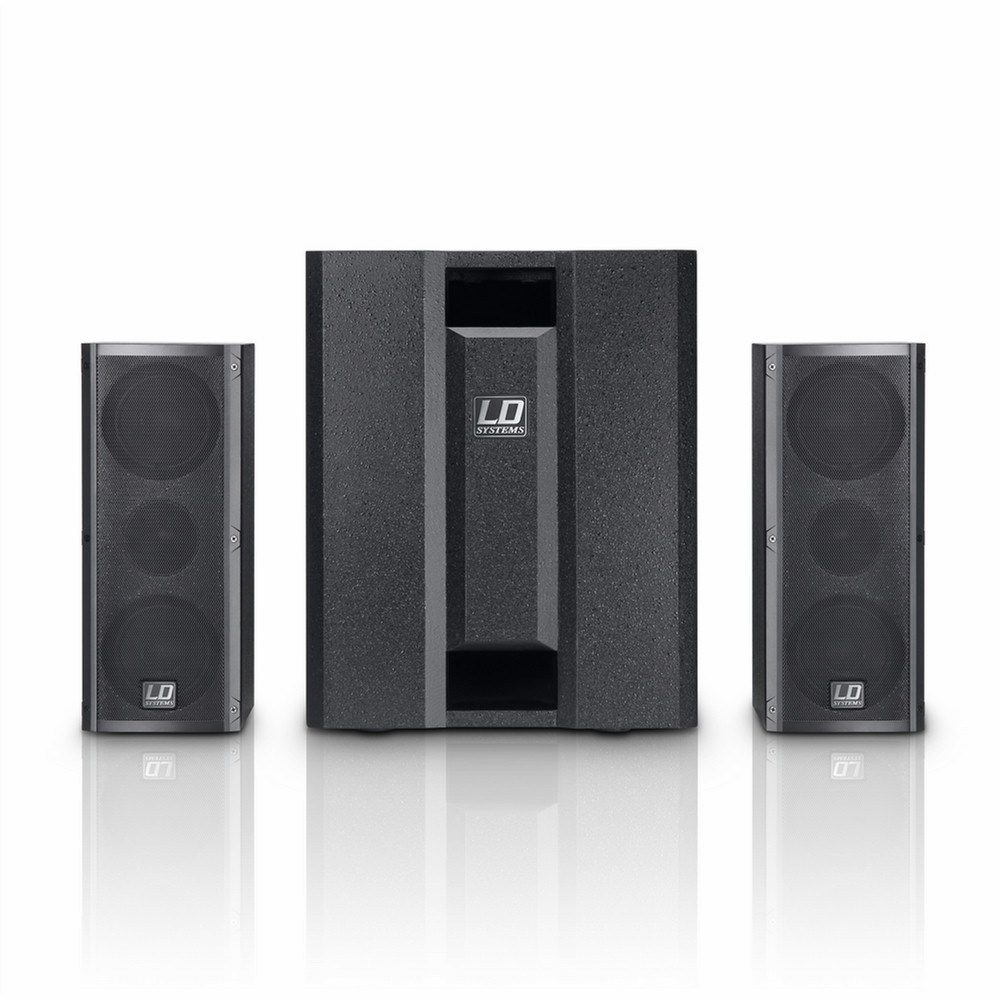

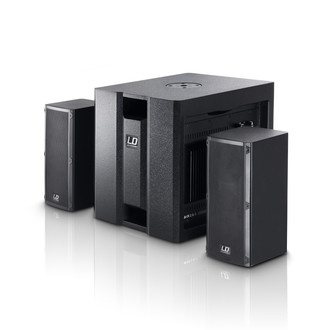

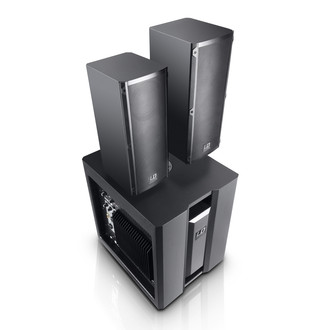

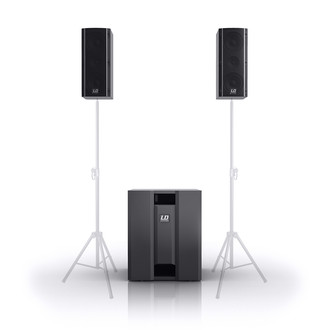

With the DAVE 8 Roadie, LD Systems are successfully implementing their motto "pro audio in motion". This complete PA system with its powerful 1400-watt (Peak) power amp delivers astounding performance for mobile applications. The system is equipped with a high-performance 8" band-pass subwoofer and two satellite speakers (2 x 4" + 1") and was designed as a flexible and portable mini PA system especially for musicians.

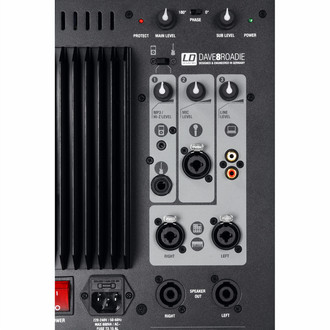

The DAVE 8 Roadie features three different inputs, which can be used simultaneously. One channel has a combo socket (XLR/jack) for dynamic microphones. One channel offers dual RCA connectors for computers as well as a combo socket (XLR/jack) for mixers or keyboards. Finally, the third channel has a 3.5 mm stereo and a 6.3 mm mono jack input for MP3 players or guitars with a switch for selecting the desired input. The high-performance Class A/B power amp module integrated in the subwoofer powers both the subwoofer and the satellites.

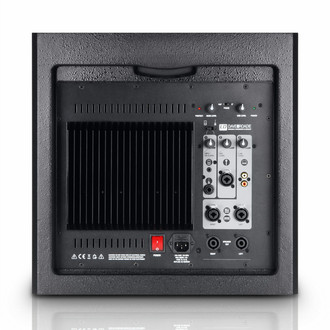

The systems features all of the usual protection circuits. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

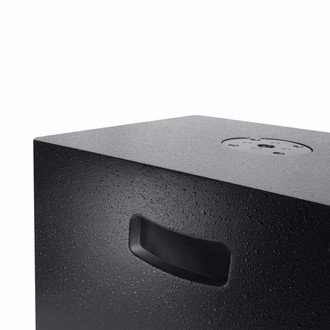

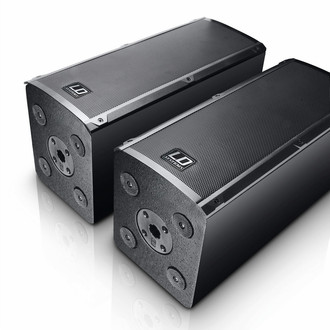

Sturdy front grilles and ergonomic handles on both the subwoofer and the satellites underscore the roadworthiness of the DAVE 8 Roadie and make the system an ideal companion for musicians.
