卫星音箱
| 卫星音箱数量 |
1 |
| Satellite speaker mid-range driver diameter |
3 " |
| Satellite speaker tweeter diameter |
1 " |
| 卫星音箱高音扬声器数量 |
2 |
| 卫星音箱类型 |
3-way |
超低音音箱
| Subwoofer driver diameter (imperial) |
8 " |
| 超重低音炮驱动器数量 |
2 |
重量和尺寸
| 卫星音箱尺寸（宽x深x高） |
96 x 104 x 795 mm |
| 卫星扬声器重量 |
5600 g |
| 超重低音炮重量 |
20200 g |
| 超重低音扬声器尺寸（宽x深x高） |
370 x 480 x 484 mm |
扩音器
| 输出功率放大器 |
1000 W |
| 扩增设备类型 |
Amplifier |
| 扩增设备电路板 |
Built-in |
| 扩增设备 |
Y |
| 放大器/接收器输入接口类型 |
3.5 mm jack, 6.3 mm jack, RCA, XLR |
| 放大器/接收器的输出接口类型 |
XLR, RCA |
端口 & 界面
| AirPlay |
N |
| 线连通性 |
6.3 mm |
| Line-in |
Y |
| 蓝牙 |
Y |
技术细节
| 液晶显示器指示灯 |
Y |
| 均衡器 |
Y |
| 磁石式 |
Ferrite |
| 频率范围 |
45 - 20000 Hz |
SPL 126 dB, RMS 1000 W, 45 - 20000 Hz, RCA, XLR/6.3 mm, 3.5mm, 31200 g, black

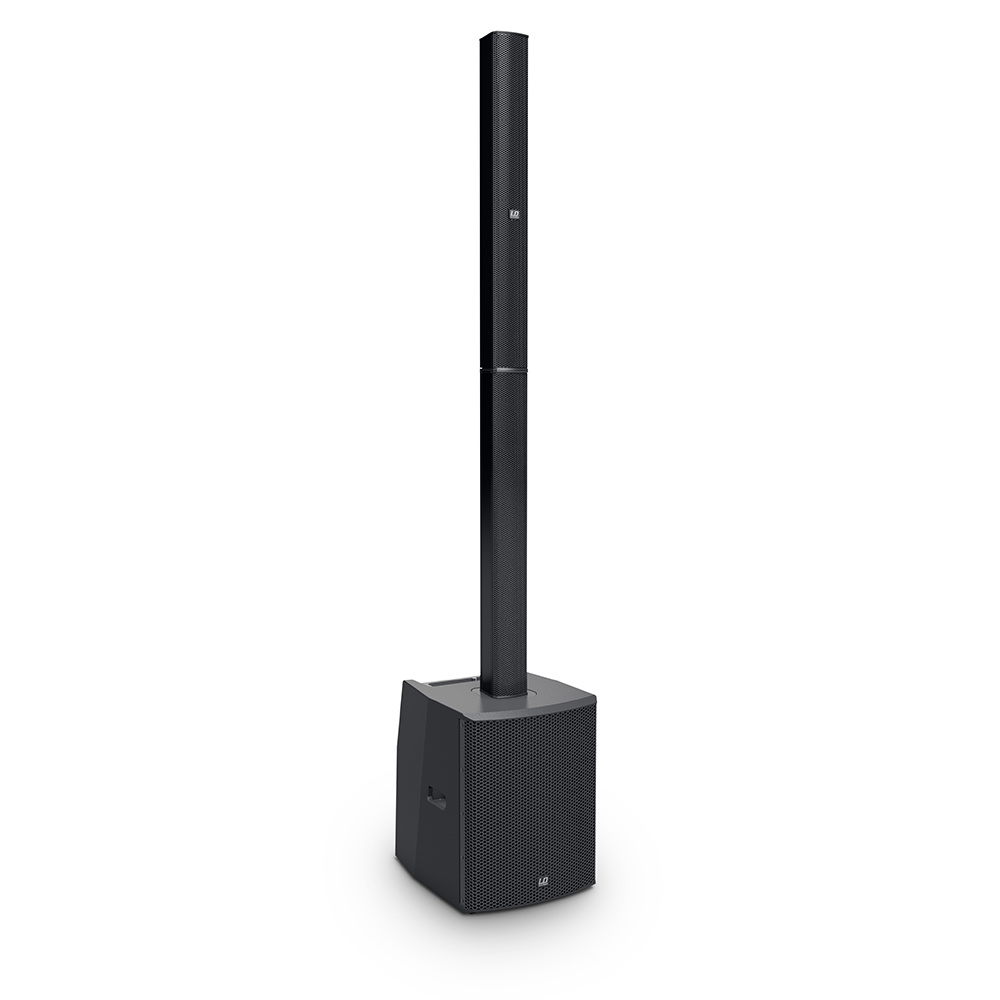

Compact Column PA System with Mixer and Bluetooth black
A complete sound system to carry in one go along with your instrument: that’s the MAUI 28 G2. Simply put the two column elements in the padded shoulder bag, grab the subwoofer with one hand and your guitar or keyboard with the other. Assembling the all-in-one PA and monitoring system with its custom plug-and-play multipin connectors is just as easy. The MAUI 28 G2 delivers unmatched audio quality and astonishing coverage from a compact, elegant package. It has been engineered with years of experience in column systems to provide a user-friendly solution for medium sized gigs and installations.
The MAUI 28 G2 sports a complement of two 8” woofers, sixteen 3” fullrange transducers and dual 1” neodymium compression drivers. Producing a punchy low end, balanced midrange and silky smooth highs, they are driven by a lightweight Class D power stage with a mighty 2,000 watts peak output. LD Systems’ DynX® DSP technology ensures top performance and distortion-free audio at all times. It includes a multiband limiter to prevent clipping, EQ, a compressor and a 3-way crossover for perfect time alignment.
The line array configuration of the MAUI 28 G2 results in extended coverage, high feedback resistance and extra wide dispersion that lets you perform without the need for separate monitors. The high frequency drivers’ waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a uniform pattern so your audience hears you the same from front to back row.
The MAUI 28 G2 puts you in control with a built-in 4-channel mixer, system presets for mono or stereo setup and Bluetooth® audio streaming. If you’re a singer-songwriter, solo entertainer, DJ or play in a small combo you’ll appreciate extraordinary audio performance and convenient portability. The column and sub can be placed apart making the system highly flexible and a great choice for installed sound applications, as well. With a selection of smart transport accessories and dedicated mounting hardware the MAUI 28 G2 is a comprehensive solution down to the smallest details.
