端口 & 界面
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| 接口类型 |
PCI Express 2.0 |
内存参数
| 独立显卡适配器內存 |
1 GB |
| 内存带宽（最大） |
28.8 GB/s |
| 图形适配器内存类型 |
GDDR3 |
| 数据宽度 |
128 bit |
性能
| HDCP |
Y |
| 集成电视调谐器 |
N |
| PhysX |
Y |
| NVIDIA 3D Vision |
Y |
| 填补率 |
11.2 billion texels/sec |
| DirectX版本 |
11 |
| OpenGL版本 |
4.0 |
| 最高着色模型版本 |
5.0 |
处理器
| 处理器频率 |
700 MHz |
| 流处理器 |
96 |
| CUDA |
Y |
| 图形适配器随机存取存储器数字/模拟转换器 |
400 MHz |
| 图形处理器系列 |
NVIDIA |
另外
| 双dvi（互应式数字视频） |
Y |
| 图形处理器 |
GeForce GT 430 |

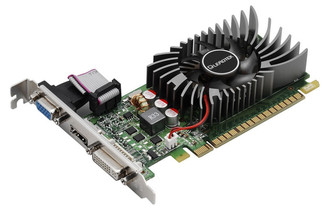

WinFast GT 430, 1024 MB, PCIe 2.0, 700 MHz, DirectX 11, NVIDIA 3D
- Next generation architecture delivers incredible gaming performance at maximum resolution and quality settings.
- Revolutionary DirectX 11 technology and NVIDIA® CUDA™ architecture bring games closer than ever to cinema-quality effects and visuals.
- GPU Clock at 700 MHz
- HDCP capable
- 1024MB, 128-bit memory interface for Hi-Res /AA/AF gaming
- Support Dual-Link DVI, D-Sub, HDMI
- Microsoft DirectCompute 5.0 Support for Windows 7, OpenGL 4.0 and Shader Model 5.0
- Smoothly playback H.264, MPEG-2, VC-1 and WMV video–including WMV HD
<b>PCI Express 2.0 Support </b>
Designed to run perfectly with the new PCI Express 2.0 bus architecture, offering a future-proofing bridge to tomorrow's most bandwidth-hungry games and 3D applications by maximizing the 5 GT/s PCI Express 2.0 bandwidth (twice that of first generation PCI Express). PCI Express 2.0 products are fully backwards compatible with existing PCI Express motherboards for the broadest support.
<b>NVIDIA® unified architecture</b>
Fully unified shader core dynamically allocates processing power to geometry, vertex, physics, or pixel shading operations, delivering up to 2x the gaming performance of prior generation GPUs.
<b>DDR3 Memory on Board </b>
Enhanced memory speed and capacity ensures more flowing video quality in latest gaming environment especially in large scale textures processing.
<b>Dual-Link DVI </b>
Support hardware with awe-inspiring 2560-by-1600 resolution, such as the 30-inch HD LCD Display, with massive load of pixels, requiring a graphics cards with dual-link DVI connectivity.
<b>Dual 400MHz RAMDACs</b>
Blazing-fast RAMDACs support dual QXGA displays with ultra-high, ergonomic refresh rates up to 2048x1536@85Hz.
<b>32x Anti-aliasing Technology </b>
Lightning fast, high-quality anti-aliasing at up to 32x sample rates obliterates jagged edges.
<b>Microsoft® DirectX® 11 Shader Model 5.0 Support </b>
DirectX 11 GPU with Shader Model 5.0 support designed for ultra high performance in the new API's key graphics feature, GPU-accelerated tessellation.
<b>Dual-stream Hardware Acceleration</b>
Provides ultra-smooth playback of H.264, VC-1, WMV and MPEG-2 HD and Bul-ray movies.
<b>NVIDIA ® PureVideo ™ HD technology </b>
The combination of high-definition video decode acceleration and post-processing that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for movies and video.
<b>HDCP Capable </b>
Allows playback of HD DVD, Blu-ray Disc, and other protected content at full HD resolutions with integrated High-bandwidth Digital Content Protection (HDCP) support. (Requires other compatible components that are also HDCP capable.)
<b>OpenGL® 4.0 Optimizations and Support</b>
Full OpenGL support, including OpenGL 4.0
<b>NVIDIA PhysX™ -Ready </b>
Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.
<b>NVIDIA CUDA™ Technology support</b>
CUDA technology unlocks the power of the GPU's processor cores to accelerate the most demanding tasks such as video transcoding, physics simulation, ray tracing, and more, delivering incredible performance improvements over traditional CPUs.
