内存参数
| 最大内部存储 |
64 GB |
| 内存插槽数量 |
16 x DIMM |
| 内存布局 |
2 x 4 GB |
| 内存时钟速度 |
1066 MHz |
| 错误更正代码 |
Y |
| 内置存储器 |
8 GB |
| 内存类型 |
DDR3-SDRAM |
处理器的特殊功能
| 英特尔® 增强暂停状态 |
N |
| 英特尔®超线程技术 |
Y |
| 英特尔® 防盗技术 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
| CPU配置（最大） |
2 |
| 英特尔® 双显示功能技术 |
N |
| 英特尔® 清晰视频技术 |
N |
| 英特尔®64 |
Y |
| 英特尔® 内线™ |
N |
| 英特尔®快速同步视频技术 |
N |
| Processor ARK ID |
53578 |
| 英特尔®虚拟化技术（VT -x） |
Y |
| 英特尔®可信执行技术 |
Y |
| 英特尔® Flex内存访问 |
N |
| 英特尔® 快速内存访问 |
N |
| 英特尔®Turbo Boost技术 |
Y |
| 英特尔®快速存储技术 |
N |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔® FDI技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®MID清晰视频技术 |
N |
| 英特尔® 我的WiFi技术 |
N |
| 英特尔®清晰视频高清技术 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®基于需求开关 |
N |
处理器
| 处理器运行模式 |
64-bit |
| 可扩展性 |
S2S |
| 可选用的嵌入式选项 |
N |
| FSB奇偶校验 |
N |
| 无冲突处理器 |
N |
| 处理器支持内存通道 |
Quad |
| 处理器支持显存频率 |
1333, 1066, 978, 800 MHz |
| 处理器高速缓存类型 |
Smart Cache |
| 处理器代码 |
SLC3U |
| 热监测技术 |
Y |
| 执行禁止位 |
Y |
| 处理器高速缓存 |
30 MB |
| 核心的处理器数量 |
10 |
| 散热设计功耗 (TDP) |
130 W |
| 总线频率 |
18 |
| 处理器光刻 |
32 nm |
| 处理器封装尺寸 |
49.17 mm |
| 处理器加速频率 |
2.8 GHz |
| 处理器安装数量 |
1 |
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
2 |
| 外壳温度 |
69 °C |
| 处理器支持最大内存 |
1024 GB |
| 处理器频率 |
2.4 GHz |
| 步进 |
A2 |
| 总线类型 |
QPI |
| 处理器支持内存类型 |
DDR3-SDRAM |
| 支持指令集 |
SSE4.2, SSE4.1 |
| 处理器支持 ECC 功能 |
Y |
其他功能
| 磁碟阵列控制器 |
M5015 |
| 图形适配器系列 |
Matrox |
存储介质
| 热插拔 |
Y |
| 硬盘尺寸 |
2.5 " |
| RAID支持 |
Y |
| 最大存储容量 |
8 TB |
| 支持的硬盘数量 |
16 |
能量控制
| 电源供应数量 |
1 |
| 电源类型 |
AC/DC |
| 电源 |
675 W |
联网
| 局域网控制器 |
Broadcom BCM5709C |
| 网路唤醒功能 |
Y |
| 网路功能 |
Gigabit Ethernet |
扩展槽
| PCI Express × 4插槽 |
1 |
| PCI Express x8插槽 |
5 |
| PCI Express插槽版本 |
2.0 |
认证标准
| 遵守工业标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| 能源之星认证 |
Y |
另外
| 主板晶片 |
Intel 7500 |
| InTru™3D技术 |
N |
| 以太网连接器 |
Y |
| 系统总线 |
6.4 GT/s |
| 图形适配器 |
G200eV |
| 英特尔®AES新指令 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

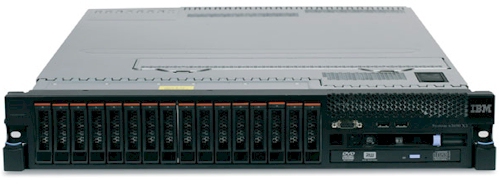

x3690 X5, Intel Xeon E7-2870 (30M Cache, 2.40 GHz, 6.40 GT/s Intel QPI), 2 x 4GB DDR3 ECC, 0GB HDD, Matrox G200eV 16MB DDR2, Gigabit Ethernet, 2 x RJ-45, 16 x 2.5" SAS/SATA HDD, 6 x USB 2.0, 675W, 12800g
Highlights:
- Achieve four-processor performance at a two-processor investment.
- Grow to meet changing workload demands with unmatched memory expansion.
- Own and operate your systems with less complexity and cost.
- Get peace of mind with enterprise-class reliability and availability.
EXA performance, two-processor value
When it comes to business productivity, more is always better—especially if you can achieve it without using more money, space or energy. Innovative and cost-efficient, the IBM System x3690 X5 delivers four-processor performance, memory capacity and reliability features in a breakthrough two-processor system that incorporates Intel® Xeon® processors and fifth-generation IBM X-Architecture® (eX5) technology. By purchasing a system with two fewer processors, you can cut your licensing costs in half while using less energy for a lower total cost of ownership. And you won’t have to trade performance for a denser form factor. The x3690 X5 offers leadership performance, including the ability to better handle database transactions than industry-standard two-processor servers.
Unparalleled flexibility
The x3690 X5 features greater flexibility to help you meet changing workload demands as your business grows. With MAX5, you can double the memory capacity of your two-processor system to 64 DIMM slots. Increase utilization and optimize your investments by fitting 100 percent more virtual machines per system at half the cost per virtual machine with MAX5 memory expansion. An easy upgrade path and customizable growth options offer freedom of choice. For example, you can add more memory without having to purchase unneeded processing capabilities.
Product features
- Performance and memory capacity of previous 4-processor, 4U servers in a 2-processor, 2U system.
- Built on the latest IBM X-Architecture technology with fifth-generation eX5 chipset design enhancements.
- Easy upgrade path and customizable growth options for unmatched flexibility.
- Advanced service and remote management capabilities for greater ease of use and improved productivity.
- Balanced, power-optimized design for enhanced performance per watt.
Hardware summary
- 2-processor, 2U rack-optimized enterprise server with Intel Xeon processors.
- 6-core, 8-core and 10-core processor options with up to 2.4 GHz (ten-core), 2.67 GHz (eight-core) and 1.73 GHz (six-core) speeds with up to 30 MB L3 cache.
- Expand memory in a 2-processor system from 32 DIMMs to 64 DIMMs via MAX5.
- 5 PCIe Gen 2 expansion slots.
- Up to 16 2.5" HDDs or 24 1.8" SSDs.
- Internal USB for embedded hypervisor.
