处理器
处理器频率 |
1.5 GHz |
三级高速缓存 |
1.5 MB |
核心的处理器数量 |
1 |
端口 & 界面
DisplayPort 数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
麦克风/音频输入插孔 |
Y |
PS/2连接埠数量 |
2 |
串口数量 |
4 |
并口数量 |
1 |
耳机输出端口 |
1 |
DC-IN插口 |
Y |
存储介质
集成读卡器 |
N |
总存储容量 |
1 GB |
儲存裝置 |
Flash |
内存参数
内存插槽数量 |
1x SO-DIMM |
内置存储器 |
2 GB |
内存类型 |
DDR3-SDRAM |
最大内部存储 |
4 GB |
内存时钟速度 |
1600 MHz |
重量和尺寸
深度(不含底座) |
170 mm |
宽度(不含底座) |
55 mm |
高度(不含底座) |
220 mm |
另外
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |
主板晶片 |
Intel NM70 Express |

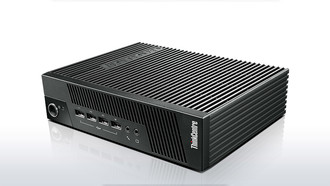

Intel Celeron 807, 2GB DDR3 1600 MHz, 1 GB ROM, USB 2.0, PS/2, VGA, Display-Port, Intel HD Graphics, LeTOS
<b>Fan-Less, Cable-Less Design</b>
Whisper-quiet and designed for lower power consumption, M32 meets Energy Star 5.2 certification and promises high efficiency, energy savings, and long life.
<b>Lenovo Thin Client Manager on Server</b>
This web-based application gives administrators the ability to access the console from any terminal, and to manage Thin Clients individually or as a group. Delivered as a virtual appliance, LTM is easy to install, user-friendly, and intuitive.
<b>Variety of I/O Support</b>
No matter your legacy port needs, M32 has you covered, with support for USB 2.0, VGA out, DP out, COM, Parallel, PS/2 – plus customizable pin definition on your COM port design.
<b>Dual Display Support</b>
Connect two monitors, using either a VGA port or a DisplayPort – save on the cost of an additional graphics card.
<b>Security Lock</b>
After deployment, keep each of your ultra-small PCs where it belongs with a Kensington Security Lock.
<b>Multiple Virtualization Management App Certifications</b>
M32 is compatible with Citrix® Receiver, VMWare® View and Microsoft Remote FX, for better manageability.
