设计
| 5.25" 托架数量 |
1 |
| 3.5" 托架数量 |
1 |
| 英特尔®分段标记 |
Enterprise |
存储介质
| 硬盘尺寸 |
3.5 " |
| 硬盘转速 |
7200 RPM |
| 总存储容量 |
160 GB |
| 集成读卡器 |
N |
| 硬盘接口 |
Serial ATA |
| 安装的硬盘驱动器的数量 |
1 |
联网
| 布线技术 |
10/100Base-T(X) |
| 无线局域网连接 |
N |
| 网路唤醒功能 |
Y |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
软件
| 试用软件 |
Microsoft Office 2007, McAfee VirusScan Plus |
| 操作系统结构 |
32-bit |
处理器的特殊功能
| 英特尔®快速存储技术 |
N |
| 热监测技术 |
Y |
| 处理器封装尺寸 |
37.5 mm |
| 英特尔®快速同步视频技术 |
N |
| 英特尔® 双显示功能技术 |
N |
| 英特尔® 快速内存访问 |
N |
| 英特尔® Flex内存访问 |
N |
| 执行禁止位 |
Y |
| 英特尔®可信执行技术 |
N |
| Processor ARK ID |
42800 |
| 处理器代码 |
SLGTJ |
| 英特尔® 内线™ |
N |
| 英特尔®64 |
Y |
| 英特尔® 清晰视频技术 |
N |
| CPU配置（最大） |
1 |
| 可选用的嵌入式选项 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
| 英特尔® 防盗技术 |
N |
| 英特尔®超线程技术 |
N |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔® 增强暂停状态 |
Y |
| 英特尔® 我的WiFi技术 |
N |
| 英特尔®MID清晰视频技术 |
N |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
N |
| 英特尔® FDI技术 |
N |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔®基于需求开关 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®清晰视频高清技术 |
N |
内存参数
| 内存插槽数量 |
2x SO-DIMM |
| 内存时钟速度 |
1066 MHz |
| 内存布局 |
1 x 2 GB |
| 最大内部存储 |
4 GB |
| 内置存储器 |
2 GB |
| 内存类型 |
DDR3-SDRAM |
端口 & 界面
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| DVI端口 |
N |
| DisplayPort 数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
处理器
| 步进 |
R0 |
| 处理器频率 |
2.8 GHz |
| 处理器安装数量 |
1 |
| 处理器高速缓存 |
2 MB |
| 处理器光刻 |
45 nm |
| 散热设计功耗 (TDP) |
65 W |
| 处理器代号（codename） |
Wolfdale |
| 无冲突处理器 |
N |
| FSB奇偶校验 |
N |
| 总线频率 |
14 |
| 处理器运行模式 |
64-bit |
| 核心的处理器数量 |
2 |
| 外壳温度 |
74.1 °C |
| 处理器支持 ECC 功能 |
N |
| 总线类型 |
FSB |
| 处理器前端汇流总线 |
800 MHz |
| 处理器高速缓存类型 |
Smart Cache |
| Number of Processing Die Transistors |
228 M |
其他功能
| BIOS密码 |
Y |
| 软盘驱动器的安装 |
N |
| 图形适配器系列 |
Intel |
| 平台 |
PC |
| 遵守工业标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| 网路功能 |
Gigabit Ethernet |
图像
| 板载图形适配器 |
Y |
| 独立显卡类型 |
Intel GMA 4500 |
另外
| InTru™3D技术 |
N |
| 以太网连接器 |
Y |
| 英特尔®AES新指令 |
N |
| 以太网路(RJ-45)连接接口数量 |
1 |
| Processing die size |
82 mm² |

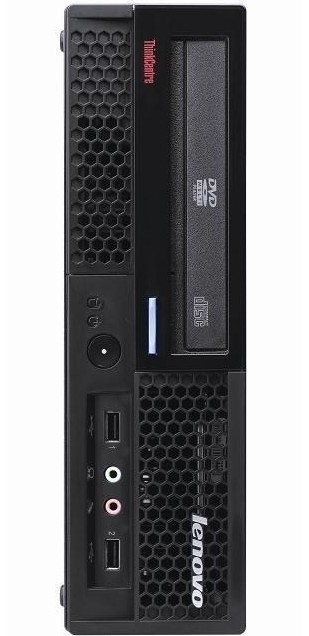

ThinkCentre M58, Intel Pentium E5500 (2M Cache, 2.80 GHz, 800 MHz FSB), 2GB DDR3, 160GB HDD, Intel GMA 4500, DVD-R, Gigabit Ethernet, 8 x USB 2.0, USFF, Windows 7 Professional 32-Bit
A smarter way to do enterprise PCs.
Premium performers. Efficient cost-cutters. Convenient space-savers.
Whatever your need, we have the professional-strength desktops to meet it. All designed to simplify
management, step up security and boost uptime in mid-sized to large organizations.
Tackle demanding workloads with ease.
M Series desktops with AMD processors or Intel® Core™ i series processors, and DDR3 memory deliver responsive performance at breakneck speeds—making quick work of the most intensive applications. If you need to power through advanced video editing and 2-D and 3-D image design, M Series can oblige. And all M Series PCs are available with Lenovo Enhanced Experience for Windows® 7 for startup and shutdown times you have to see to believe!
Productivity squared.
Talk about multitasking! View up to four screens simultaneously with dual independent display (DID) support. The expanded work area and easier navigation between applications helps reduce errors and improve productivity.
Easy PC management.
Take advantage of a host of PC-management tools and features that help save time, cut costs and increase user productivity by letting IT personnel:
- Speed migration.
- Spend less time manually searching for system updates.
- Monitor, diagnose, repair, and audit PCs remotely, reducing costly, time-consuming desk-side visits.
- Centrally and remotely manage data.
- Access internal components easily without tools.
Promise of platform stability.
Select M Series desktops offer image stability for long-term deployments to help reduce transition, qualification and testing costs. These models are produced for at least 12 months after general availability with no planned hardware changes that affect the preloaded software image.
One size doesn't fit all.
That's why M Series desktops (depending on model) are available in three form factors.
- Standard tower provides the most robust performance, expandability and features.
- Small form factor (SFF) saves space in smaller work areas.
- Eco ultra-small form factor (USFF) is small enough to fit in your hand for the ultimate in compact computing.
Better design is built in.
Enjoy a more comfortable user experience with thoughtful ergonomic design and easy-to-use features, including a convenient top power button and handle, tilted front panel for easy plug-and-play device access and cat-foot cushioning for less vibration.
Protect your most valuable asset: your data.
Lock down your critical business information. We include some of the best security tools available on M Series desktops. Tools that let you centrally manage hardware passwords, alert users if their chassis have been opened without authorization, disable USB ports, help locate lost or stolen PCs and much more.
Do business in the green.
ThinkCentre desktops help you save energy and associated costs. Our M Series desktops are designated with some of the industry's highest environmental certifications, including ENERGY STAR, EPEAT® Gold, TCO, and GREENGUARD®. Plus ThinkCentre desktops are made with up to 48.8% post-consumer content—the industry’s highest—with minimal use of plastic. Additionally, with smart technology like ThinkVantage Power Manager software, you can control your PC fleet’s electricity usage.
Accessorize your ThinkCentre M Series.
- Work in comfort. The Lenovo Extend Arm mounts to your desk and lets you easily adjust your PC’s monitor. Extend, raise, tilt and pivot for the most comfortable viewing position (57Y4352).
- Picture this. The wide Lenovo ThinkVision L1951P LCD monitor not only delivers brilliant screen images, crisp font reproduction and an adjustable stand, it's one of the most environmentally responsible monitors available (2448HB6).
- Get connected. Easily connect a VGA analog monitor to a DisplayPort source device with our DisplayPort-to-VGA monitor cable. Offers 1920 x 1200 WUXGA maximum resolution. No software required (57Y4393).
Windows® 7
Lenovo offers a wide variety of systems preloaded with the newest Windows 7 operating system.
Windows® 7 Lenovo Enhanced Experience PCs
Get the best computing experience available by selecting desktops featuring Windows 7 Lenovo Enhanced Experience certification. Enjoy faster startup and connection times plus more entertainment and security features than ever.
Here when you need us
Lenovo's award-winning support is always a click or call away. For even faster, customized support, step up to optional ThinkPlus services.
