处理器
| 无冲突处理器 |
N |
| 总线类型 |
DMI |
| 处理器安装数量 |
1 |
| 处理器高速缓存 |
4 MB |
| 处理器光刻 |
32 nm |
| 散热设计功耗 (TDP) |
73 W |
| PCI Express 通道数的最大值 |
16 |
| 处理器代号（codename） |
Clarkdale |
| PCI Express配件 |
1x16, 2x8 |
| FSB奇偶校验 |
N |
| 总线频率 |
22 |
| 处理器运行模式 |
64-bit |
| 步进 |
C2 |
| 核心的处理器数量 |
2 |
| 处理器频率 |
2.93 GHz |
| 外壳温度 |
72.6 °C |
| 处理器支持 ECC 功能 |
N |
| 处理器支持内存带宽（最大值） |
21 GB/s |
| 处理器支持最大内存 |
16 GB |
| 处理器高速缓存类型 |
Smart Cache |
| Number of Processing Die Transistors |
382 M |
| PCI Express插槽版本 |
2.0 |
处理器的特殊功能
| 英特尔®64 |
Y |
| 英特尔®快速存储技术 |
N |
| 图形与IMC光刻 |
45 nm |
| 英特尔® 快速内存访问 |
N |
| 英特尔® Flex内存访问 |
N |
| 执行禁止位 |
Y |
| 热监测技术 |
N |
| 英特尔®可信执行技术 |
N |
| 实体位址扩充（PAE） |
36 bit |
| 处理器封装尺寸 |
37.5 mm |
| Processor ARK ID |
46472 |
| 英特尔®快速同步视频技术 |
N |
| 英特尔® 内线™ |
N |
| 英特尔® 清晰视频技术 |
N |
| 英特尔® 双显示功能技术 |
Y |
| CPU配置（最大） |
1 |
| 可选用的嵌入式选项 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
| 英特尔® 防盗技术 |
N |
| 英特尔®超线程技术 |
Y |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔® 增强暂停状态 |
Y |
| 英特尔® 我的WiFi技术 |
N |
| 英特尔®MID清晰视频技术 |
N |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 英特尔® FDI技术 |
Y |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔®基于需求开关 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®清晰视频高清技术 |
Y |
| 支持指令集 |
SSE4.2 |
其他功能
| 集成电视调谐器 |
N |
| 遵守工业标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| 网路功能 |
Gigabit Ethernet |
| 外部驱动器托架 |
1x 3.5", 1x 5.25" |
| 内部驱动器托架 |
1x 3.5" |
| 软盘驱动器的安装 |
N |
联网
| 无线局域网连接 |
N |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
端口 & 界面
| VGA（D-SUB）端口数量 |
1 |
| DVI端口 |
N |
| Line-in |
Y |
| Line-out |
Y |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| DisplayPort 数量 |
1 |
| 串口数量 |
1 |
图像
| 板载图形适配器 |
Y |
| 板载图形适配器基本频率 |
733 MHz |
| 板载图形适配器支持的显示器数量 |
2 |
| 板载图形适配器系列 |
Intel HD Graphics |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x16 插槽 |
1 |
内存参数
| 内存时钟速度 |
1333 MHz |
| 最大内部存储 |
8 GB |
| 内置存储器 |
4 GB |
| 内存类型 |
DDR3-SDRAM |
存储介质
| 硬盘转速 |
7200 RPM |
| 总存储容量 |
320 GB |
| 集成读卡器 |
Y |
| 硬盘接口 |
Serial ATA |
| 安装的硬盘驱动器的数量 |
1 |
另外
| InTru™3D技术 |
N |
| 以太网连接器 |
Y |
| 英特尔®AES新指令 |
N |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 系统总线 |
2.5 GT/s |
| Processing die size |
81 mm² |

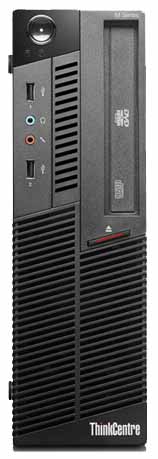

ThinkCentre M90 - Intel Core i3-530 (2.93GHz), 4GB DDR3 RAM, 320GB SATA HDD, DVD±RW, Gigabit Ethernet, Windows 7 Professional
The Lenovo ThinkCentre M90 / M90p desktop is designed for Enterprise Businesses seeking optimum performance with maximum investment returns. This best-in-class desktop meets your sophisticated computing needs with industry-leading performance. The ThinkCentre M90 / M90p desktop is available in three standard form factors—Tower, Small Form Factor (SFF) and Eco Ultra-Small Form Factor (USFF).
Experience ultimate performance and multi-tasking of applications with the latest family of Intel® Core™ i series processors, offering Intel® Turbo Boost and Intel® Hyper-Threading technologies. The ThinkCentre M90 / M90p gives excellent graphics experience and has a clear edge over existing desktops. Productivity gets a real boost with the preloaded new Windows® 7 Lenovo Enhanced Experience which has very fast boot-up and shutdown times with multi-touch support.
Get a full PC experience, data security, remote data management and worry-free storage with the latest Secure Managed Client (SMC) 2.0 and Intel® vPro™ technologies. These in turn drive down costs, downtime and desk-side visits. The Active Management Tool, a part of Intel® vPro™ technology is designed to work independently of the operating system.
Data security is of prime importance for all leading businesses. ThinkCentre M90 / M90p configured with the available Hardware Password Manager tool reduces password-reset time of the hard drive significantly. Optional PS/2 ports prevent unauthorized data access and virus attacks through USB peripheral devices.
Save on power costs with the Energy Star® compliant Power Supply Unit and the Lenovo Power Manager tool. The ThinkCentre® M90 / M90p re-affirms its commitment towards a green environment. The desktop is now built with up to 42% Post Consumed Content 1 (PCC), which is the industry’s highest, with the minimum use of plastic.
Ergonomically designed ThinkCentre M90 / M90p offers the Power button on top, thus avoiding the need to bend to turn your PC on. The tilted front design of I/O ports allows to plug-and-play devices easily and the top carry handle offers easy portability.
The amazing ThinkCentre M90 / M90p is a smart choice for all businesses requiring high-performance, excellent data security and quick returns on investment.
