处理器的特殊功能
处理器封装尺寸 |
42.5 x 45 mm |
执行禁止位 |
Y |
闲置状态 |
Y |
热监测技术 |
N |
英特尔®可信执行技术 |
N |
实体位址扩充(PAE) |
36 bit |
英特尔®虚拟化技术(VT -x) |
Y |
Processor ARK ID |
40800 |
物理地址扩展(PAE) |
Y |
英特尔®64 |
Y |
可选用的嵌入式选项 |
N |
英特尔®超线程技术 |
N |
英特尔®Turbo Boost技术 |
N |
英特尔®VT-x的扩展页表(EPT) |
Y |
增强型英特尔®SpeedStep动态节能技术 |
Y |
英特尔®基于需求开关 |
Y |
支持指令集 |
SSE4.2 |
处理器
处理器运行模式 |
64-bit |
处理器支持内存带宽(最大值) |
25.6 GB/s |
处理器前端汇流总线 |
1066 MHz |
处理器高速缓存类型 |
Smart Cache |
处理器安装数量 |
1 |
QPI链接数量 |
1 |
处理器高速缓存 |
4 MB |
处理器光刻 |
45 nm |
散热设计功耗 (TDP) |
130 W |
处理器支持显存频率 |
800, 1066 MHz |
处理器支持内存通道 |
Triple |
核心的处理器数量 |
2 |
处理器频率 |
2.4 GHz |
处理器支持 ECC 功能 |
Y |
处理器支持最大内存 |
24 GB |
处理器支持内存类型 |
DDR3-SDRAM |
总线类型 |
QPI |
存储介质
安装的硬盘驱动器的数量 |
2 |
硬盘容量 |
500 GB |
硬盘转速 |
7200 RPM |
集成读卡器 |
Y |
硬盘接口 |
Serial ATA II |
其他功能
图形适配器系列 |
ATI |
处理器生产厂商 |
Intel |
机架安装 |
N |
网路功能 |
Gigabit Ethernet (10/100/1000) |
内存参数
内存类型 |
DDR3-SDRAM |
错误更正代码 |
Y |
内存时钟速度 |
1333 MHz |
内存插槽数量 |
6x DIMM |
最大内部存储 |
48 GB |
内置存储器 |
6 GB |
扩展槽
PCI Express x16 插槽 |
2 |
PCI 插槽 |
1 |
PCI Express × 1插槽 |
1 |
PCI Express × 4插槽 |
1 |
设计
5.25" 托架数量 |
2 |
3.5" 托架数量 |
4 |
机箱板型 |
Tower |
端口 & 界面
串口数量 |
1 |
Line-in |
Y |
耳机输出端口 |
1 |
S/PDIF输出接口 |
Y |
麦克风/音频输入插孔 |
Y |
eSATA端口数量 |
1 |
DVI-I接口数量 |
1 |
DisplayPort 数量 |
2 |
光盘驱动器
BD接口类型 |
SATA |
光驱类型 |
DVD Super Multi DL |
另外
系统总线 |
4.8 GT/s |
主板晶片 |
Intel X58 Express |
图形适配器 |
FirePro V3700 |
英特尔®AES新指令 |
N |
以太网路(RJ-45)连接接口数量 |
1 |

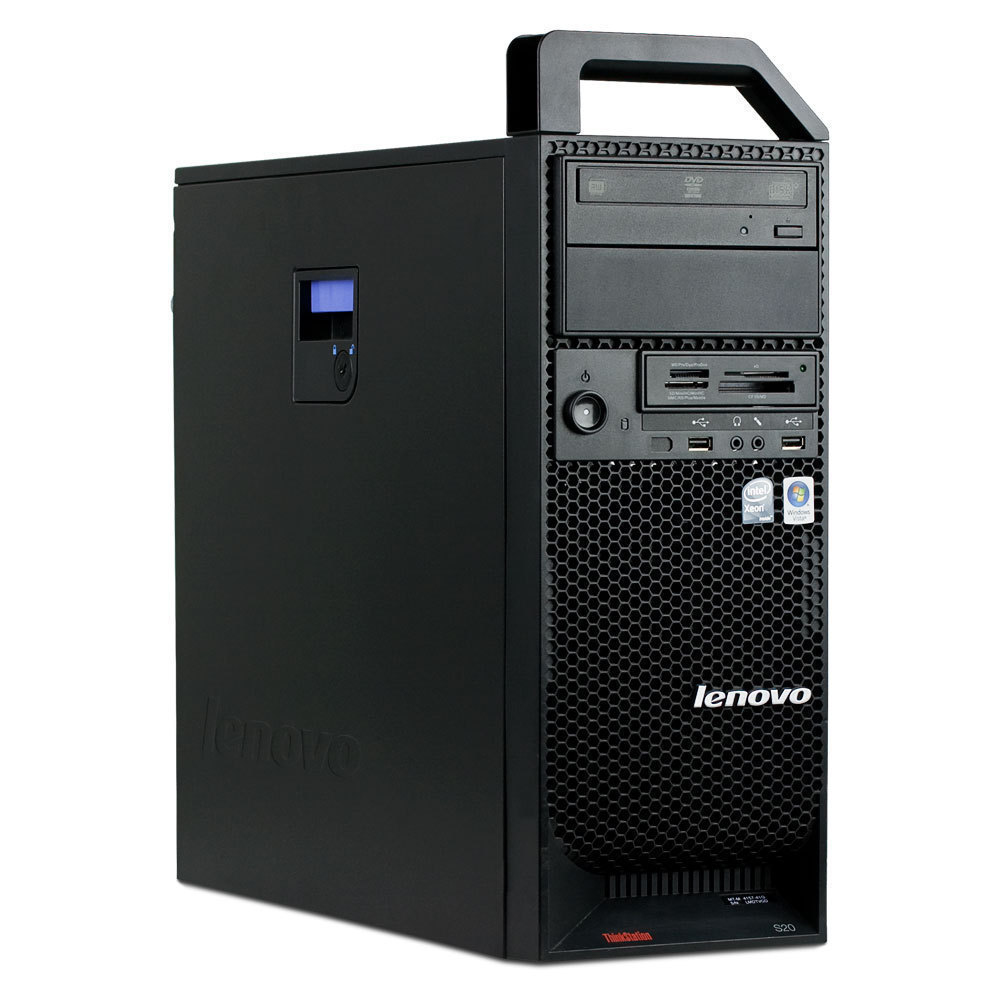

Intel Xeon Processor W3503(2.4GHz), 6GB, 2x250GB HDD, ATI FirePro V3700 256MB PCIe, Gigabit Ethernet, DOS License
Do more, faster.
Whether your work involves manufacturing, design, science, or finance, our ThinkStation workstations deliver the power you need to do more than any standard desktop. The latest Intel® processors, including Intel Xeon® CPUs with Turbo Boost Technology, are beyond fast - designed for intelligent performance and energy efficiency, these processors automatically adjust based on your usage needs. To amp up responsiveness, we've made room for as many as 12 DIMM slots on select workstations. Plus, we've added DDR3 Error-Code Correcting (ECC) memory, which virtually eliminates memory-related failures.
ThinkStation workstations offer powerful discrete NVIDIA® Quadro® and NVS professional graphics. And on the E30, Intel® HD Graphics too - everything you need for high-performance computing solution graphics to do more
Also, with support for up to a whopping eight monitors at once, ThinkStation workstations help you design, analyze, and simulate - faster than anything else!
Lenovo Enhanced Experience for Windows® 7 PCs boast significantly faster boot-up and shutdown times as well as hardware and software innovations to help you work more productively.
Dedicated support.
ISV-certified. Lenovo works closely with leading software partners, and ThinkStation workstations have hundreds of independent software vendor (ISV) certifications, ensuring that you have the performance you need to run the world's most demanding applications. ISV-certified means dedicated support for maximum performance and reliability so you can do more without worry.
Reliable and secure.
Rigorous voltage, shock, vibration, and drop tests ensure that your Lenovo workstation is equipped with the rock-solid durability Think-branded products are renowned for. Plus our ThinkVantage® Technologies automate updates and maintenance tasks, protect your business critical information, and prevent unauthorized access to data.
Our Rescue and Recovery® helps you recover from system crashes with the push of a button, even if the primary operating system won't boot. And with Client Security Solution, you simply can’t get a higher level of security as a standard PC feature from any other manufacturer.
Additionally, select workstations include Intel® vPro™ technology with AMT 7, for remote maintenance, remove control, fast calls for help, and more.
Clever design.
Our user-centric designs with thoughtful details help you work more productively and make life a little simpler.
- Ergonomic removable top handle, plus rear handle for easy moving
- Recessed handle for easy rack mounting on C20 and C20x
- Front-access media ports with illuminated icons
- Recessed power button to help prevent accidental shutoffs
- Tool-less chassis for quick and easy upgrades
- Superior cable management
- Premium side-cover latch for easy access to internal components
- Rack-mountable
- Dramatically smaller C20 and C20x models for extra horsepower in the same area - up to 14 systems on a standard 42U rack
Rest assured.
Epic Games uses Lenovo ThinkStations to build their world-renown Unreal Engine 3, used by game studios globally. With their unmatched power and reliability, Epic is able to continually push the boundaries of what is technically and visually possible. Mega-blockbusters including Bulletstorm, Infinity Blade, and the upcoming Gears of War 3 are all developed on Lenovo's ultimate machines.
The North American Eagle (NAE), which may be the fastest vehicle on the planet, relies on some of Lenovo's most powerful technology. Lenovo workstations let the NAE team push design innovation to the extreme in their attempt to break the land speed record - over 800 mph.
