处理器
| 处理器安装数量 |
1 |
| QPI链接数量 |
1 |
| 处理器高速缓存 |
4 MB |
| 处理器光刻 |
45 nm |
| 散热设计功耗 (TDP) |
130 W |
| 处理器支持显存频率 |
800, 1066 MHz |
| 核心的处理器数量 |
2 |
| 处理器频率 |
2.4 GHz |
| 处理器支持内存类型 |
DDR3-SDRAM |
| 总线类型 |
QPI |
| 处理器支持内存通道 |
Triple |
| 处理器运行模式 |
64-bit |
| 处理器支持 ECC 功能 |
Y |
| 处理器支持内存带宽（最大值） |
25.6 GB/s |
| 处理器支持最大内存 |
24 GB |
| 处理器高速缓存类型 |
Smart Cache |
其他功能
| 外部驱动器托架 |
3.5" x 1, 5.25" x 2 |
| 内部驱动器托架 |
3.5" x 3 |
| 处理器生产厂商 |
Intel |
| 扬声器 |
Y |
处理器的特殊功能
| 执行禁止位 |
Y |
| 闲置状态 |
Y |
| 热监测技术 |
N |
| 英特尔®可信执行技术 |
N |
| 物理地址扩展（PAE） |
Y |
| 支持指令集 |
SSE4.2 |
| 实体位址扩充（PAE） |
36 bit |
| 英特尔®虚拟化技术（VT -x） |
Y |
| 处理器封装尺寸 |
42.5 x 45 mm |
| Processor ARK ID |
40800 |
| 英特尔®64 |
Y |
| 可选用的嵌入式选项 |
N |
| 英特尔®超线程技术 |
N |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔®基于需求开关 |
Y |
内存参数
| 内存时钟速度 |
1333 MHz |
| 内置存储器 |
3 GB |
| 错误更正代码 |
Y |
| 内存布局 |
3 x 1 GB |
| 最大内部存储 |
12 GB |
| 内存类型 |
DDR3-SDRAM |
扩展槽
| PCI Express × 1插槽 |
1 |
| PCI Express × 4插槽 |
1 |
| PCI Express x16 插槽 |
2 |
存储介质
| 硬盘容量 |
250 GB |
| 集成读卡器 |
N |
| 硬盘接口 |
Serial ATA |
端口 & 界面
| IEEE 1394/Firewire(火线)端口数量 |
1 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
1 |
| 串口数量 |
1 |
另外
| 图形适配器 |
FirePro V3700 |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 英特尔®AES新指令 |
N |
| 系统总线 |
4.8 GT/s |

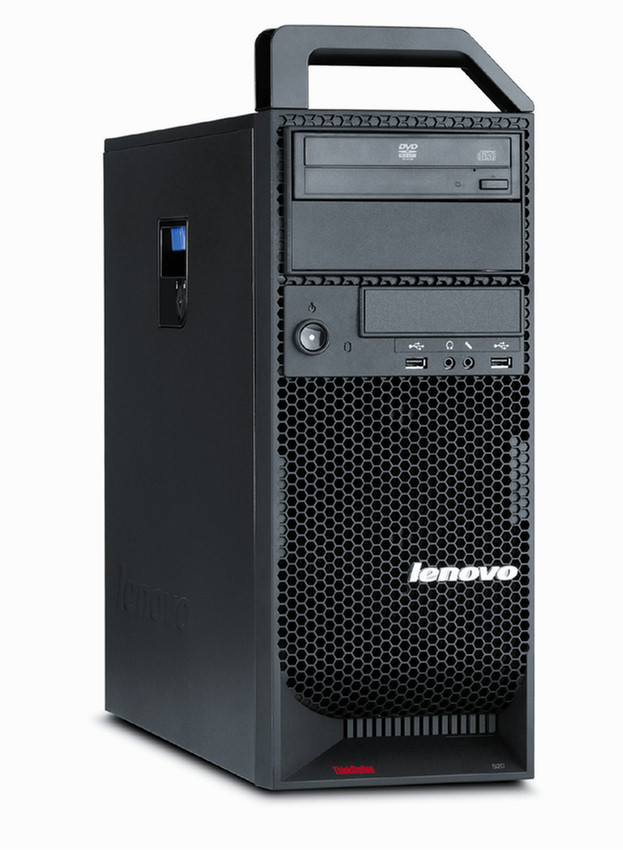

ThinkStation S20, Xeon W3503 (4M Cache, 2.40 GHz, 4.80 GT/s Intel® QPI), 3x1GB DDR3, 250GB SATA, Tower 5x6, DVD-R, ATI FirePro V3700, WIN-XP
Unleash your potential with ThinkStation
Lenovo's flagship performance machine, ThinkStation® workstation is exceptionally engineered for professional users of graphically and computationally intensive applications who require a level of performance unattainable with a standard desktop computer. Powered by Intel® Xeon® processor technology, with graphics by NVIDIA Quadro® and ATI FirePro™, ThinkStation workstation offers the professional-strength performance you need to do more, faster.
In developing the ultimate workstation, we took our legendary Think® product design and created two powerful, highly versatile models - the single-processor S Series workstations and the dual-processor D Series workstations. Both feature the latest technologies from Intel®, NVIDIA®, ATI™ and our own ThinkVantage® Technologies. Both are ISV Certified and optimized to run the world's most demanding workstation applications smoothly and worry-free. And, like all Think® brand products, ThinkStation models employ smart features and rock-solid reliability you can count on to make a day at the office like a walk in the park.
Introducing ThinkStation 2.0
From the exceptional engineers of Lenovo comes the next generation of ThinkStation workstation. The new ThinkStation S20 and D20 offer the following enhancements:
- Faster, more efficient architecture with the latest Intel® workstation technology.
- Addition of ATI FirePro™ support.
- Quieter user experience with optimized fan placement and speed control.
- Increased reliability with optimized thermal design.
- Improved cable management.
- Faster memory.
- More environmentally friendly: now EPEAT Gold qualified, with up to 26% post-consumer recycled plastics.
A smarter workstation
ThinkStation workstations offer a user-centric, environmentally conscious design that boosts productivity and ultimately results in increased productivity for your business. Enjoy the following smart design features:
- Ergonomic removable top handle.
- Front-access media ports with illuminated icons and a recessed power button.
- Superior cable management.
- Premium side cover latch for easy access to internal components.
- Innovative thermal design with optimized fan placement, for a cooler, quieter, more reliable PC.
- All ThinkStation models are rack-mountable.
ISV certified
Lenovo works closely with leading software partners, and ThinkStation workstations have hundreds of independent software vendor (ISV) certifications - ensuring you have the performance you need to run the world's most demanding workstation applications.
Stable, safe and secure
Enjoy peace of mind built into every ThinkStation workstations thanks to ThinkVantage® Technologies. Advanced security features like the available fingerprint reader keyboard and built-in ThinkVantage® Client Security Solution help to secure your data while the optimized thermal design reduces the risk of hardware failure for unmatched reliability. The ThinkVantage® Productivity Center automates updates and maintenance tasks, and places system tools and services no more than a press or a click away.
All ThinkStation models undergo a series of rigorous voltage, shock, vibration, and drop tests before they ever reach your desk, ensuring the rock-solid reliability that is the hallmark of the Think brand. And every ThinkStation model is backed by our standard warranty and Lenovo's award-winning customer support.
