设计
5.25" 托架数量 |
2 |
机箱板型 |
Tower |
3.5" 托架数量 |
4 |
线缆锁插槽 |
Kensington |
处理器
处理器安装数量 |
1 |
处理器核心电压(AC) |
1.225 V |
处理器支持内存类型 |
DDR3-SDRAM |
总线类型 |
QPI |
处理器加速频率 |
3.33 GHz |
QPI链接数量 |
1 |
处理器高速缓存 |
8 MB |
处理器光刻 |
45 nm |
散热设计功耗 (TDP) |
130 W |
处理器代号(codename) |
Bloomfield |
处理器支持显存频率 |
800, 1066 MHz |
处理器支持内存通道 |
Triple |
无冲突处理器 |
N |
处理器支持内存带宽(最大值) |
25.6 GB/s |
处理器高速缓存类型 |
Smart Cache |
FSB奇偶校验 |
N |
总线频率 |
23 |
处理器运行模式 |
64-bit |
Number of Processing Die Transistors |
731 M |
步进 |
D0 |
核心的处理器数量 |
4 |
处理器频率 |
3.06 GHz |
外壳温度 |
67.9 °C |
处理器支持 ECC 功能 |
Y |
处理器支持最大内存 |
24 GB |
PCI Express插槽版本 |
2.0 |
端口 & 界面
串口数量 |
1 |
麦克风/音频输入插孔 |
Y |
耳机输出端口 |
1 |
S/PDIF输出接口 |
Y |
eSATA端口数量 |
1 |
处理器的特殊功能
英特尔®无线显示(WiDi)技术 |
N |
英特尔®清晰视频高清技术 |
N |
英特尔®快速存储技术 |
N |
英特尔® 快速内存访问 |
N |
英特尔® Flex内存访问 |
N |
执行禁止位 |
Y |
闲置状态 |
Y |
热监测技术 |
N |
英特尔®可信执行技术 |
N |
实体位址扩充(PAE) |
36 bit |
英特尔®虚拟化技术(VT -x) |
Y |
处理器封装尺寸 |
42.5 mm |
Processor ARK ID |
39720 |
英特尔®快速同步视频技术 |
N |
英特尔® 内线™ |
N |
物理地址扩展(PAE) |
Y |
英特尔®64 |
Y |
英特尔® 清晰视频技术 |
N |
英特尔® 双显示功能技术 |
N |
CPU配置(最大) |
1 |
可选用的嵌入式选项 |
N |
英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
英特尔® 防盗技术 |
N |
英特尔®超线程技术 |
Y |
英特尔®Turbo Boost技术 |
Y |
英特尔® 增强暂停状态 |
Y |
英特尔® 我的WiFi技术 |
N |
英特尔®MID清晰视频技术 |
N |
英特尔®vPro™ 技术 |
N |
英特尔®VT-x的扩展页表(EPT) |
Y |
英特尔® FDI技术 |
N |
增强型英特尔®SpeedStep动态节能技术 |
Y |
英特尔®基于需求开关 |
N |
支持指令集 |
SSE4.2 |
其他功能
遵守工业标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
网路功能 |
Gigabit Ethernet (10/100/1000) |
图形适配器系列 |
NVIDIA |
处理器生产厂商 |
Intel |
能量控制
电源输入频率 |
50 - 60 Hz |
电源 |
625 W |
电源输入电压 |
100 - 240 V |
扩展槽
PCI 插槽 |
1 |
PCI Express × 1插槽 |
1 |
PCI Express × 4插槽 |
1 |
PCI Express x16 插槽 |
2 |
内存参数
错误更正代码 |
Y |
内存时钟速度 |
1333 MHz |
内存插槽数量 |
6x DIMM |
最大内部存储 |
12 GB |
内存类型 |
DDR3-SDRAM |
内置存储器 |
4 GB |
存储介质
硬盘容量 |
150 GB |
硬盘转速 |
10000 RPM |
RAID支持 |
Y |
硬盘接口 |
Serial ATA |
安装的硬盘驱动器的数量 |
1 |
另外
图形适配器 |
Quadro 2000 |
英特尔®AES新指令 |
N |
以太网路(RJ-45)连接接口数量 |
1 |
InTru™3D技术 |
N |
主板晶片 |
Intel X58 Express |
Processing die size |
263 mm² |
系统总线 |
4.8 GT/s |

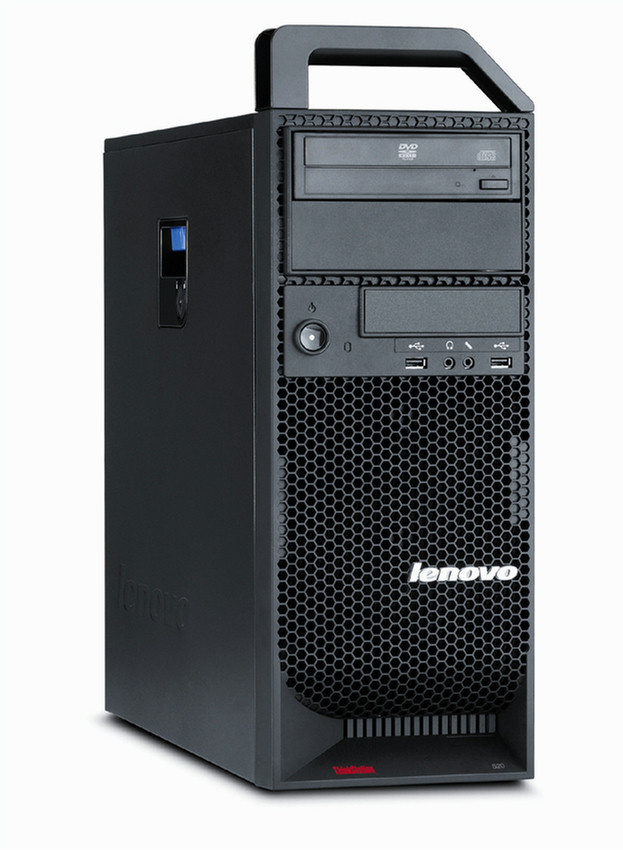

Intel Xeon W3550 (3.06 GHz), 4GB DDR3 RAM, 150GB SATA HDD, DVD-RW, Gigabit Ethernet, Tower, 625W, 14500g, Windows 7 Professional 64-bit
From Lenovo’s exceptional engineers comes the next generation of ThinkStation®, designed exclusively for specialized professionals using graphically and computationally intensive applications. Its groundbreaking design ramps up parallel workflows, enabling professional users to quickly bring their ideas to life.
Equipped with the latest technology from Intel®, the ThinkStation delivers performance that is simply unattainable with a standard desktop PC. The ThinkStation S20 and D20's powerful and efficient Intel® Xeon® processors speed through even the toughest workloads. Sporting up to eight powerful processing cores, the new ThinkStation comes fully equipped with an on-chip memory controller and Intel® QuickPath Interconnect, allowing you to innovate faster than ever before.
The Lenovo ThinkStation has an environmentally conscious, usercentric design that ultimately results in increased productivity. In addition, the performance and quality-focused Lenovo ThinkStation supports ThinkVantage® Technologies such as Rescue and Recovery™ and Client Security Solution, providing users with superior data security.
EXTREME PERFORMANCE
- Brand-new Intel® Xeon® CPUs on both S and D series workstations deliver unmatched performance with incredible efficiency;
- ThinkStation workstations come armed with a full line of bleeding-edge graphics technologies, including the NVIDIA® QUADRO® line, supporting SLI on select D Series configurations, and ATI® FirePro™ graphics;
- With up to a 1060W power supply on the D series, ThinkStation delivers all the juice your key components need to maintain peak performance.
QUIET AN D RELIA BLE
- The ThinkStation’s 24db idle operating noise level makes it nearly undetectable;
- ThinkStation's unique thermal design is engineered for maximum cool air delivery to key components, reducing the risk of hardware failure.
EN VIRONMENTALLY RESPONSI BLE
- Both the S20 and D20 are EPEAT™ GOLD, GREENGUARD® Certified;
- The ThinkStation S20 and D20 contain more than 50% recycled plastics, including 26% post-consumer content;
- All ThinkStation models are RoHS compliant;
- Many ThinkStation models are Energy Star® 5.0 compliant.
EN GINEERE D FOR THE ULTIMATE USER EXPERIENCE
- The ThinkStation’s secure premium cover latch makes the cover easily removable, allowing users to make instant upgrades;
- The ThinkStation’s illuminated front panel and icons make ports easily accessible, especially in studio and office environments;
- The ThinkStation’s ergonomically designed, removable handle makes it easy to carry, move and manage;
- Rack implementation is possible both in the ThinkStation S20 and the ThinkStation D20.
