端口 & 界面
| VGA（D-SUB）输出端口 |
1 |
| 3.5 mm 毫米输入端口 |
Y |
| RJ-45输出端口 |
1 |
| VGA（D-SUB）输入端口 |
1 |
| 3.5 mm 毫米输出端口 |
Y |
技术细节
| 最大传输距离 |
300 m |
| 可支持的电缆类型 |
Cat5, Cat6, Cat7 |
| 音频系统 |
Stereo |
| 类型 |
AV transmitter |
重量和尺寸
| 发射器尺寸（宽x深x高） |
62 x 113 x 27 mm |

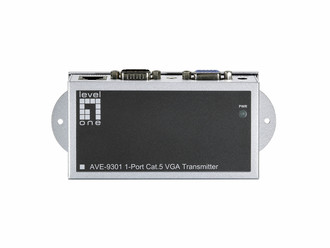

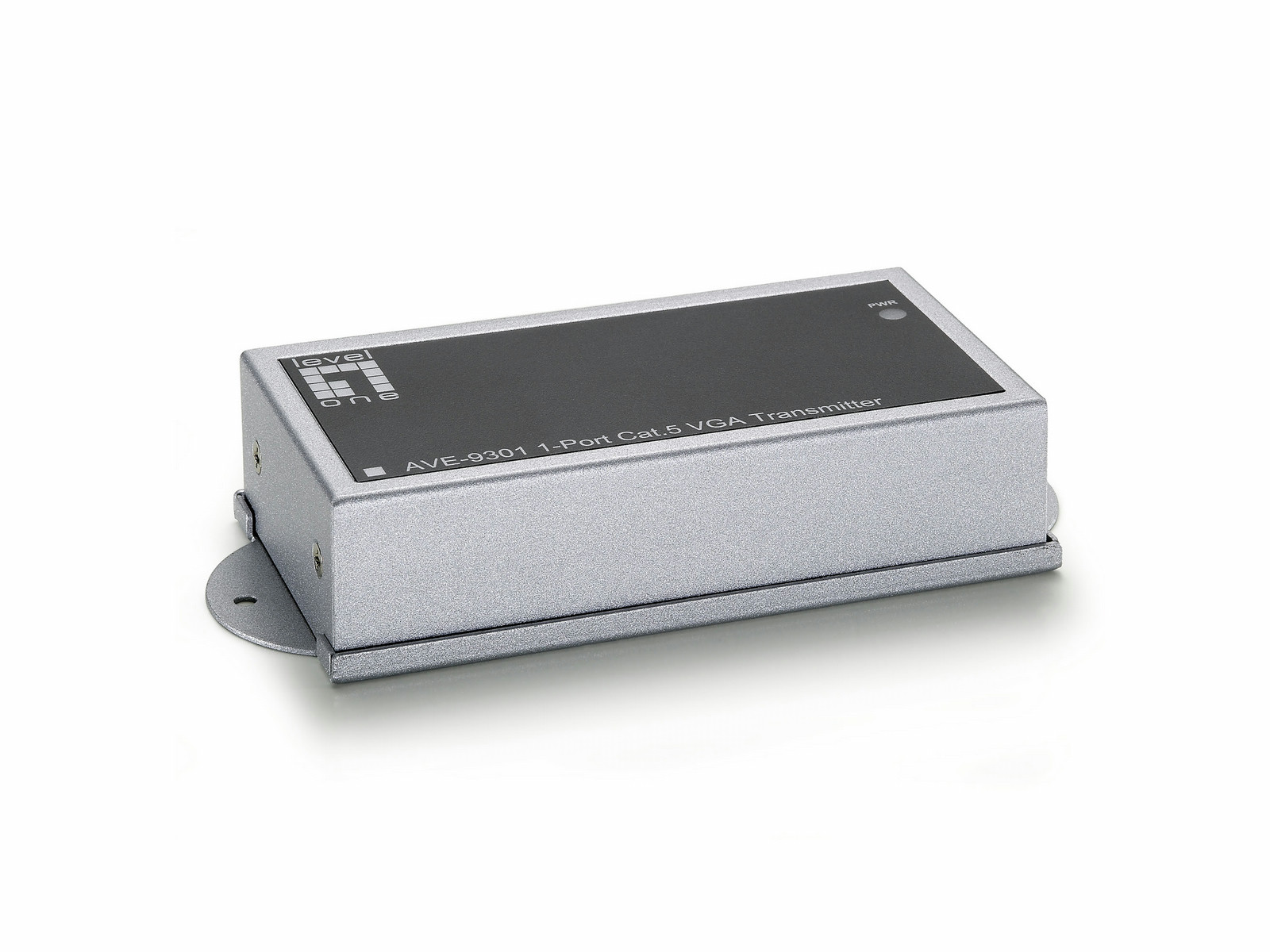

VGA, RJ-45, Cat5, 300 m, 2048 x 1536px max
Product Overview
The LevelOne AVE-93xx series of Cat.5 Audio/Video Extenders is an ideal PC, DVD player broadcast solution to transmit audio and video signals via Cat.5/6/7 cabling to multiple remote plasma or LCD monitor/screen.
Cost-effective Audio/Video Broadcasting over Ethernet
The AVE-93xx series make use of inexpensive Ethernet cabling to transmit and receive HDTV audio and video signals. Signals can be transmitted up to 300 meters away from the transmitting unit.
Flexible Multi-Location Audio/Video Broadcasting
The AVE-9301, AVE-9304, AVE-9308 and AVE-9316 transmit Audio/Video from the controlling unit (player) via Cat. 5/6/7 cabling to remote monitors. The AVE-9300 receives the signal and translates it back to its original form making it possible for the remote monitor/screen to display the original signal.
Cable Kits for Different Applications
The units support VGA/SVGA/XGA TFT-LCD, LCDTV, PDP and DDC2B enabled projectors by using different format cable kits.
- PC Cable Kit
VGA A/V with support for all VGA standards Max Resolution: 2048x1536 at 300m
- TV Cable Kit
Composite/S-Video A/V
Supports: 480i, 480p and 720i video format
Easy Installation
The compact Cat.5/6/7 Audio/Video extenders easily fit on a desk or where space is limited. No software or interface cards are needed. All repeaters and transmitters are plug-and-play orientated for quick installation.
The AVE-9304A can be cascaded to three levels to expand broadcasting locations and broadcasting distances up to 900 meters. The AVE-9304A and AVE-9300 features adjustable video gain and focus control for adjusting video signals that are extended over this distance.
