重量和尺寸
尺寸 |
19 " |
尺寸(宽 x 深 x 高) |
480 x 60 x 44 mm |
重量 |
1200 g |
联网
以太网的数据传输率 |
10, 100 Mbit/s |
以太网接口类型 |
Fast Ethernet |
支持以太网(PoE) |
Y |
产品特点
网络标准 |
IEEE 802.3, IEEE 802.3u |
液晶显示器指示灯 |
PoE, Power |
格式要素 |
1U |
认证 |
FCC Part 15 Class A, CE |
最高操作距离 |
100 m |
原产地 |
Taiwan |
环境条件
储存温度范围 (T-T) |
-40 - 70 °C |
储存相对湿度范围(H - H) |
5 - 95% |
另外
产品色彩 |
Black |
以太网路(RJ-45)连接接口数量 |
12 |
运行温度范围(T - T) |
0 - 50 °C |
12x FE PoE RJ-45, 100 m, 200 W, 48.26 cm (19 ")
- 12 ports Power over Ethernet Hub;
- IEEE 802.3af compliant;
- Remote power feeding up to 100 meters;
- Centralized power distribution for PoE Powered Device (PD);
- High safety short circuit protection;
- Total PoE Power Budget: 200W;
- Power protection: OVP/OCP/OTP;
- Power auto recovery;
- 19" Rack mountable size;
- Provides maximum power of 15.4 watts per PoE port.
Product Overview

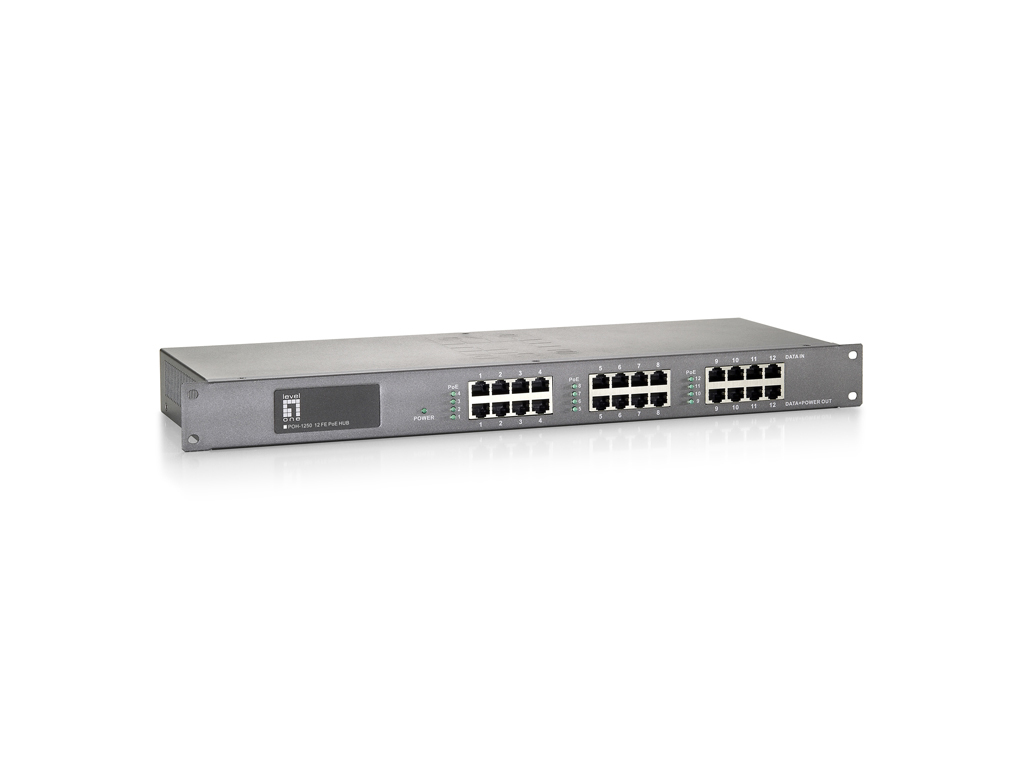

LevelOne POH-1250 12 FE PoE Hub is equipped with 12 RJ-45 ports featuring PoE function to eliminate the bulky power cable need while implementing your network infrastructure thus allowing greater flexibility in the locating of network devices and significantly decreasing installation casts.
Advanced PoE Solution
POH-1250 is fully compliant with the IEEE 802.3af standard and acts as a patch panel between a switch and other network devices to provide power and data, and it supplies PoE power of up to 15.4w per port over existing Cat.5 Ethernet cable.
Easy to Use
The compact 19’’, IU rack-mountable design enables the switch to be easily located in a server room in order to centralize power management and simplify network integration for various applications. For all the functions featured in POH-1250 users can get the benefits of flexible network solutions that can simplify the installation of wireless access points, IP cameras, IP phone and other devices or applications in the network.
