端口 & 界面
| 音响的连接 |
N |
| 控制台端口 |
3.5mm headphone, 3.5mm mic, VGA (D-Sub) |
| 麦克风输入数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 鼠标接口类型 |
PS/2 |
| 键盘接口类型 |
PS/2 |
| 计算机数量 |
16 |
| 视频接口类型 |
VGA |
4 x VGA, 16 PC, 1920 x 1440px, 12VDC, OSD

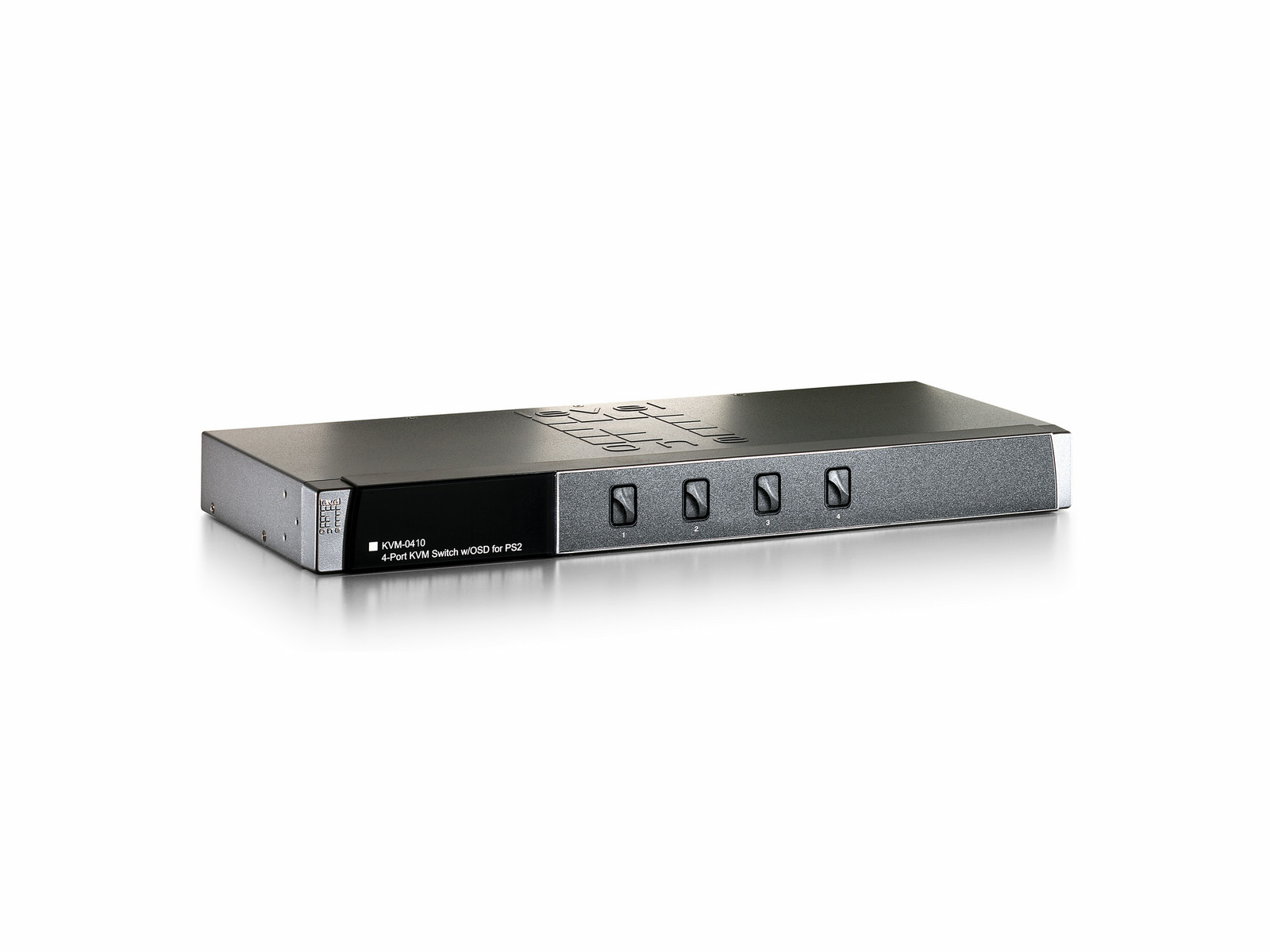

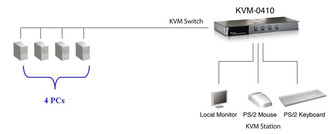

LevelOne's KVM-0410 is a 4-Port KVM switch with OSD for PS/2. The slim design offers the most reliable and efficient way of managing multiple computers in server rooms where space is less. On Screen Display (OSD) features computer naming, computer selection, status indication, auto scan and much more. Up to 136 computers can be easily managed by cascading multiple KVM switches to expand the capacity. Revolutionized video enhancement technology ensures a high resolution up to 1920 x 1440.
- Maximum computer be controlled up to 136 in cascade
- Auto-scan function automatically selects computer sequentially
- Supports Microsoft IntelliMouse (Pro)
- Assigns computers with unique and meaningful names
- Password security locks computer from unauthorized access
- Gains complete control with easy-to-use OSD interface
- Hotkey functions allow easily computer access
- Keyboard states automatically saved and restored when switching computers
- Operating system is independent and transparent to all applications
- Keyboard and mouse can be hot plugged at any time
- DDC2B compatible
